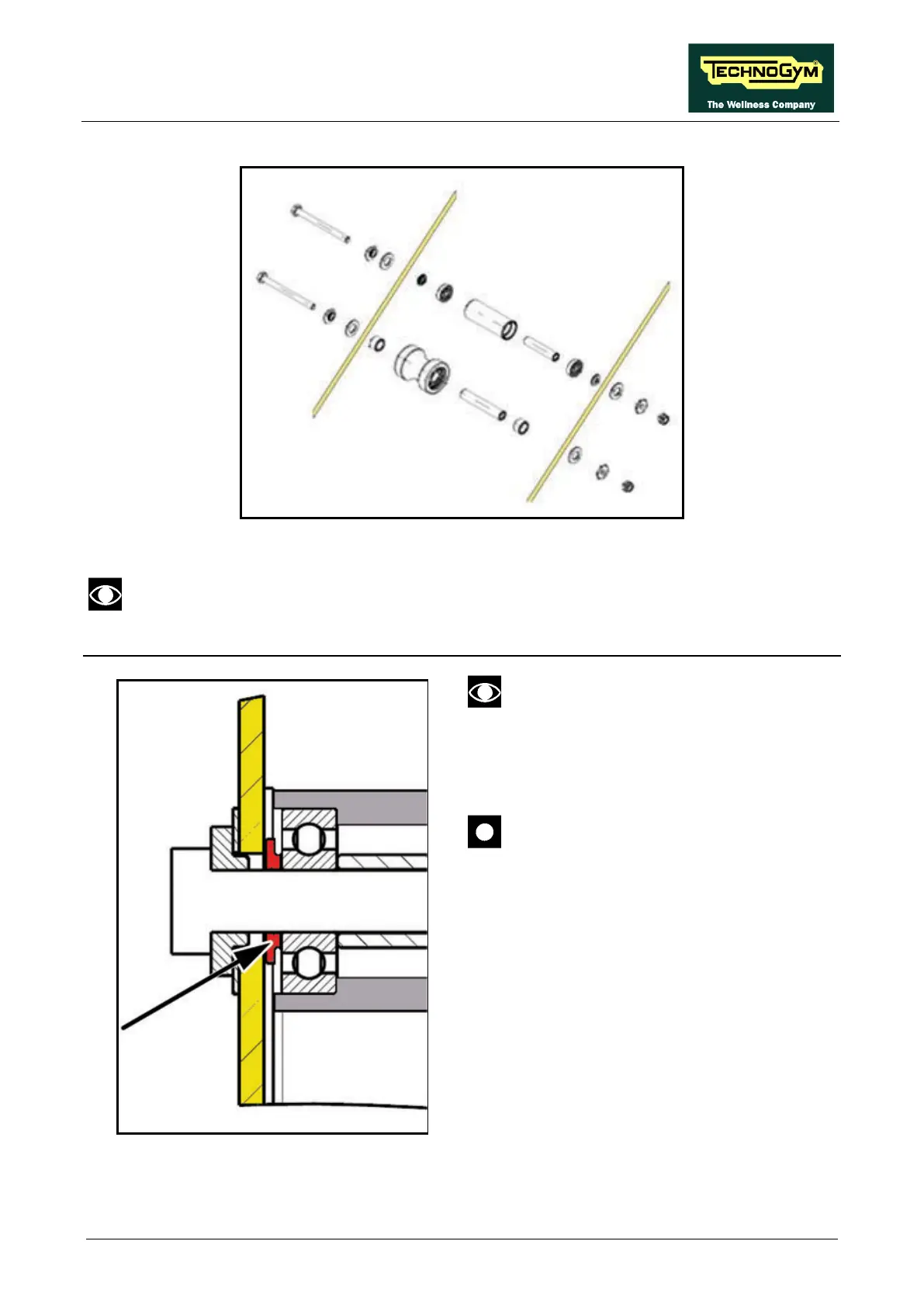

Figure 5.2-11
When reassembling the lower wheels and the rol
lers, take care to reinsert the spacers
and cams in the order shown in the figure at left (the yellow lines represent the frame).
Figure 5.2-12
When reassembling the roller, take care
to position the spacer (
shown in red and
indicated by the arrow
) so that its smaller
diameter is stopped against the bearing.
After completing this operation, check
the stability of the carriage as described
in paragraph 6.5. “
The calf carriage is
unstable”.
