Technogym PURESTRENGTH - Page 95

PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.43

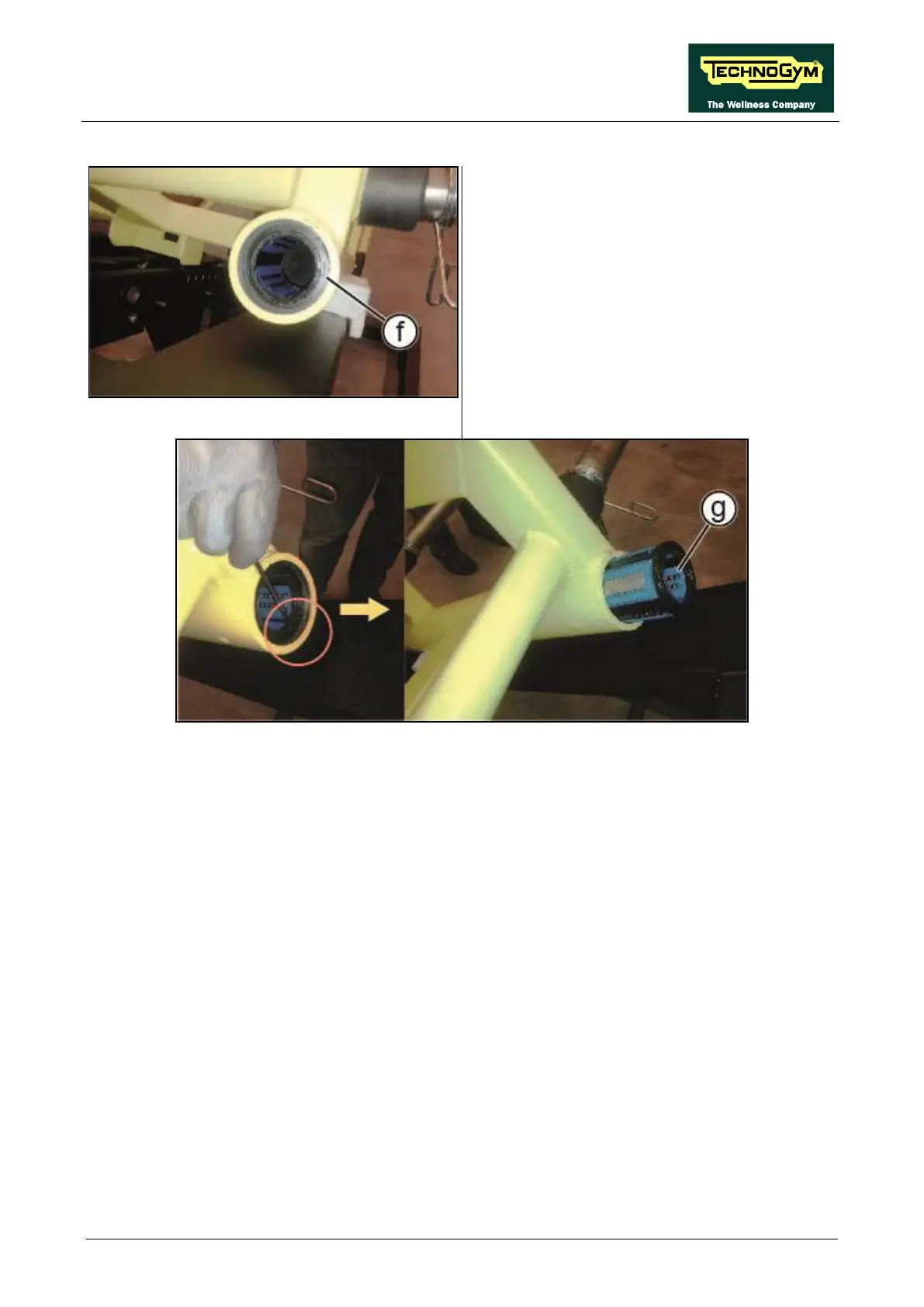

Figure 5.13-6
7. Remove the snap ring (f) using pliers for
snap rings.
Figure 5.13-7
8. Remove the bearing (g) using a flat screwdriver.
To reassemble the parts removed, follow the disassembling instructions in reverse order,
taking into account the information below:
Continued on following page →
