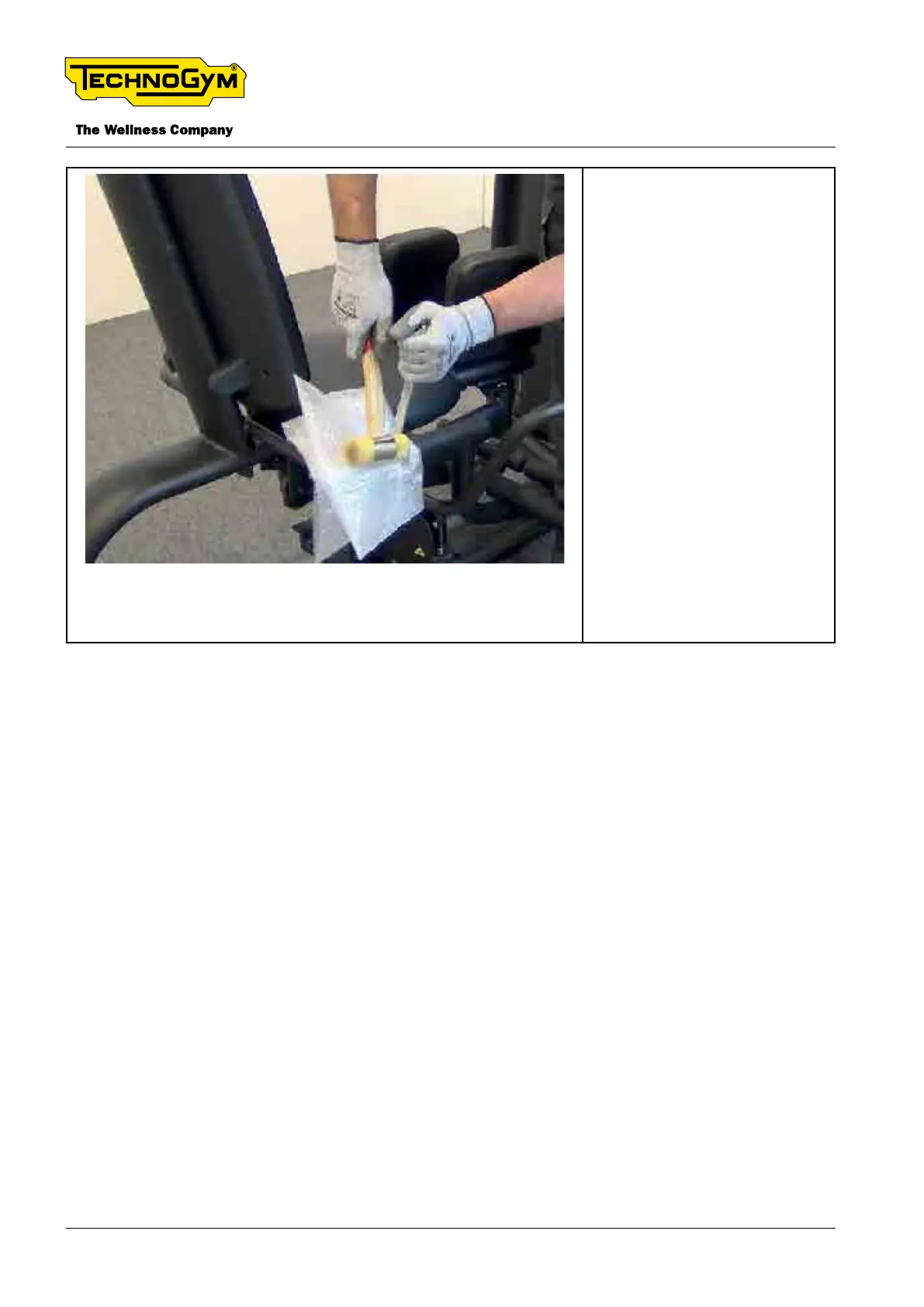

2. Protect the handle with

a cloth and remove the

rubber part. (TOOL: 24

mm open end wrench +

rubber hammer).

SELECTION 700 Technical Service Guide

Rev. 2.0

- 108 - Document uncontrolled when printed
