11.5 PULLEYS
This operation applies to all machines

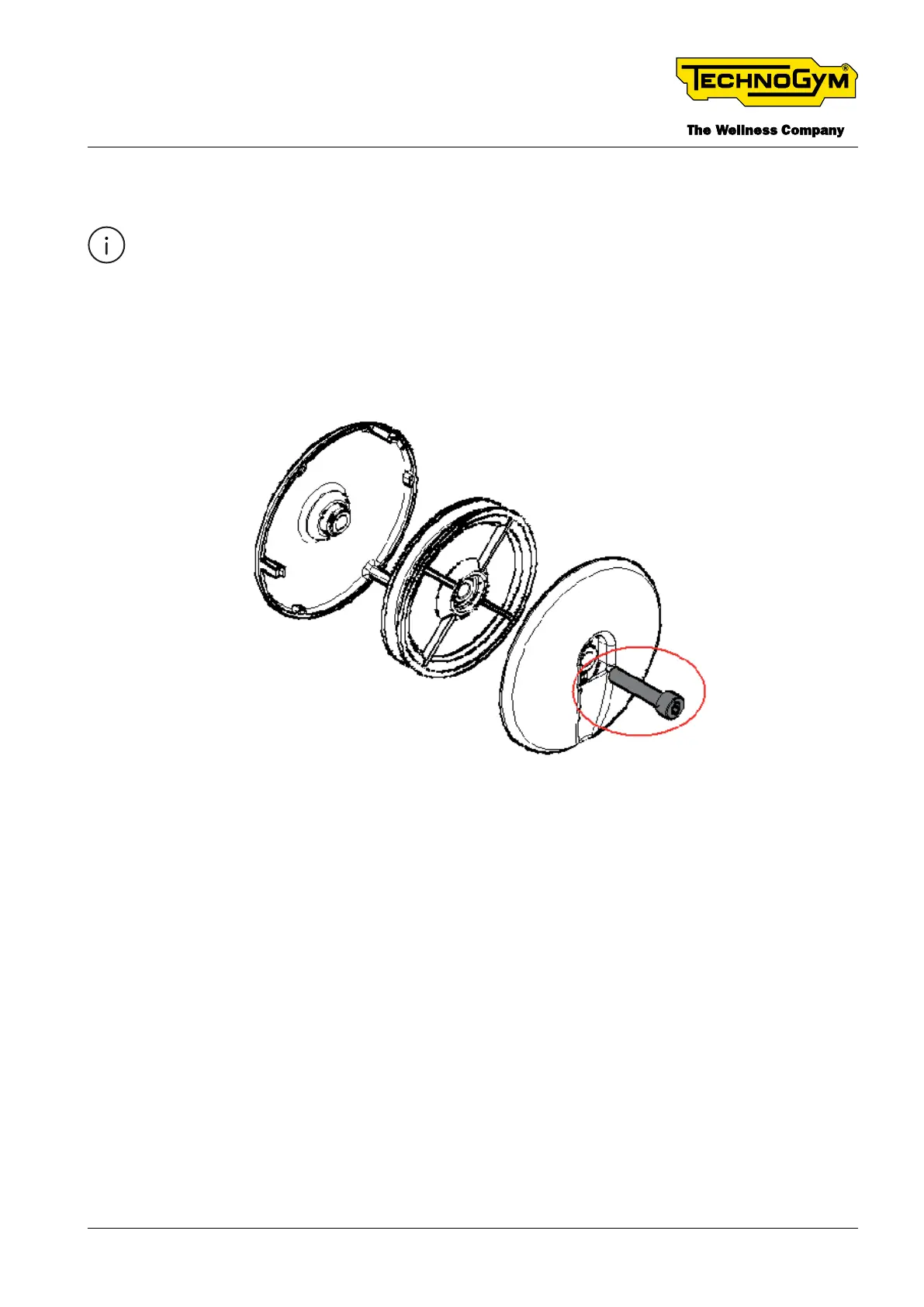

The screws of the pulleys, highlighted in grey and circled in the gure below, must be carefully
locked down to prevent them from working loose and causing problems to the user.
Fig. 88
TIGHTENING TORQUE of the screws of the pulleys: 50 Nm [36.9 lbf-ft].
