8.2.6 DISASSEMBLING THE SEAT AND THE BACKREST
ASSEMBLY
1. Perform the steps 1 and 3 described in the paragraph “7.2.3 Disassembling the gas spring”
2. Perform all the steps described in the paragraphs “7.2.4 Disassembling the eccentric and
the lower wheel on the left side.” and “7.2.5 Disassembling the eccentric and the lower
wheel on the right side.”

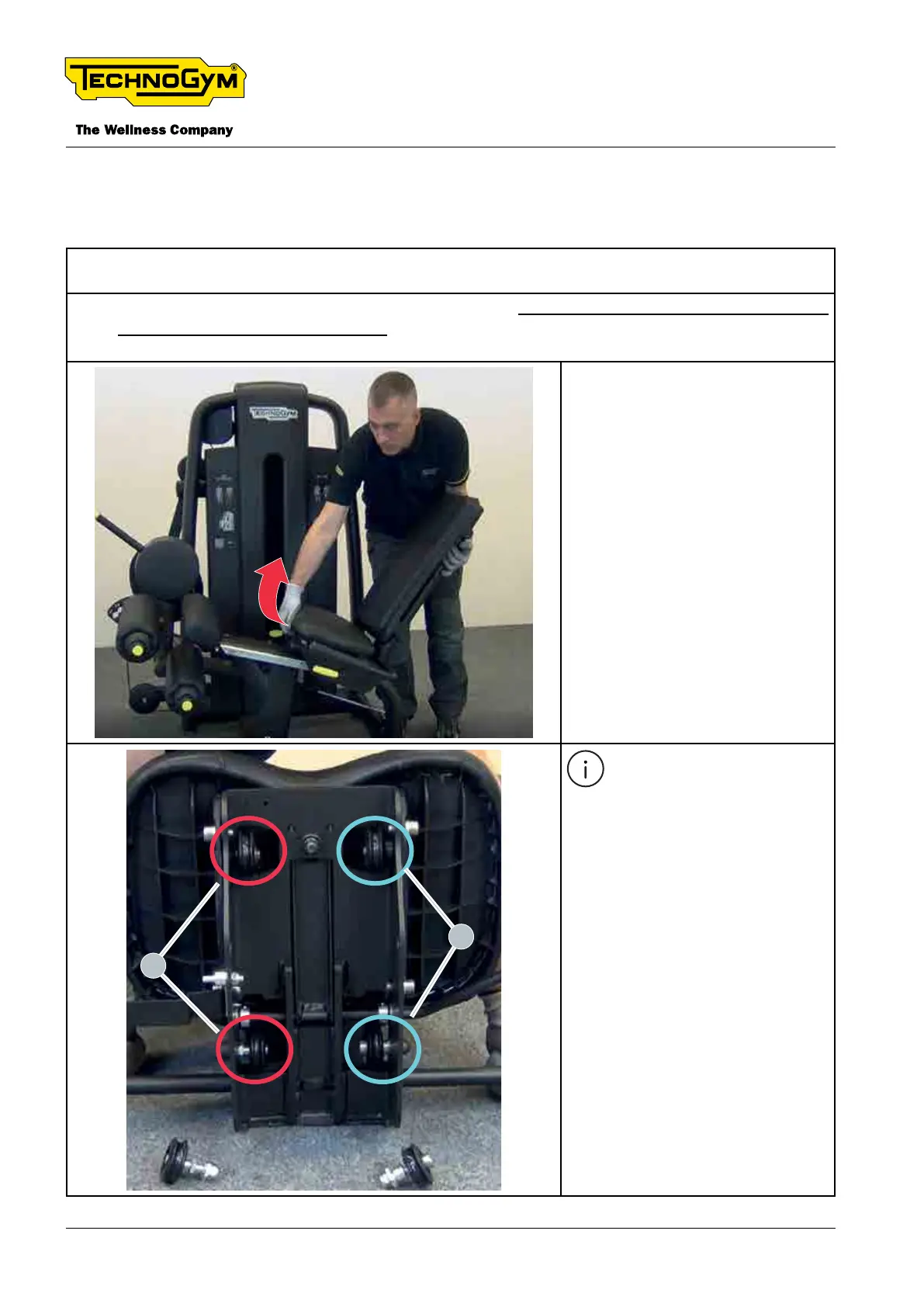

3. It’s now possible to remove
the seat/backrest assembly
as shown in the gure.
6a
6b
The wheels [6a] on the right
side of the equipment
have to move while the
wheels [6b] on the left
side of the equipment are
xed. This is because oth-
erwise the seat can not
move along the guides.
