8.2.10 DISASSEMBLING THE LEVER FOR SEAT
UNLOCKING
1. Perform the step described in the paragraph “7.2.9 Disassembling the seat padding.”
9

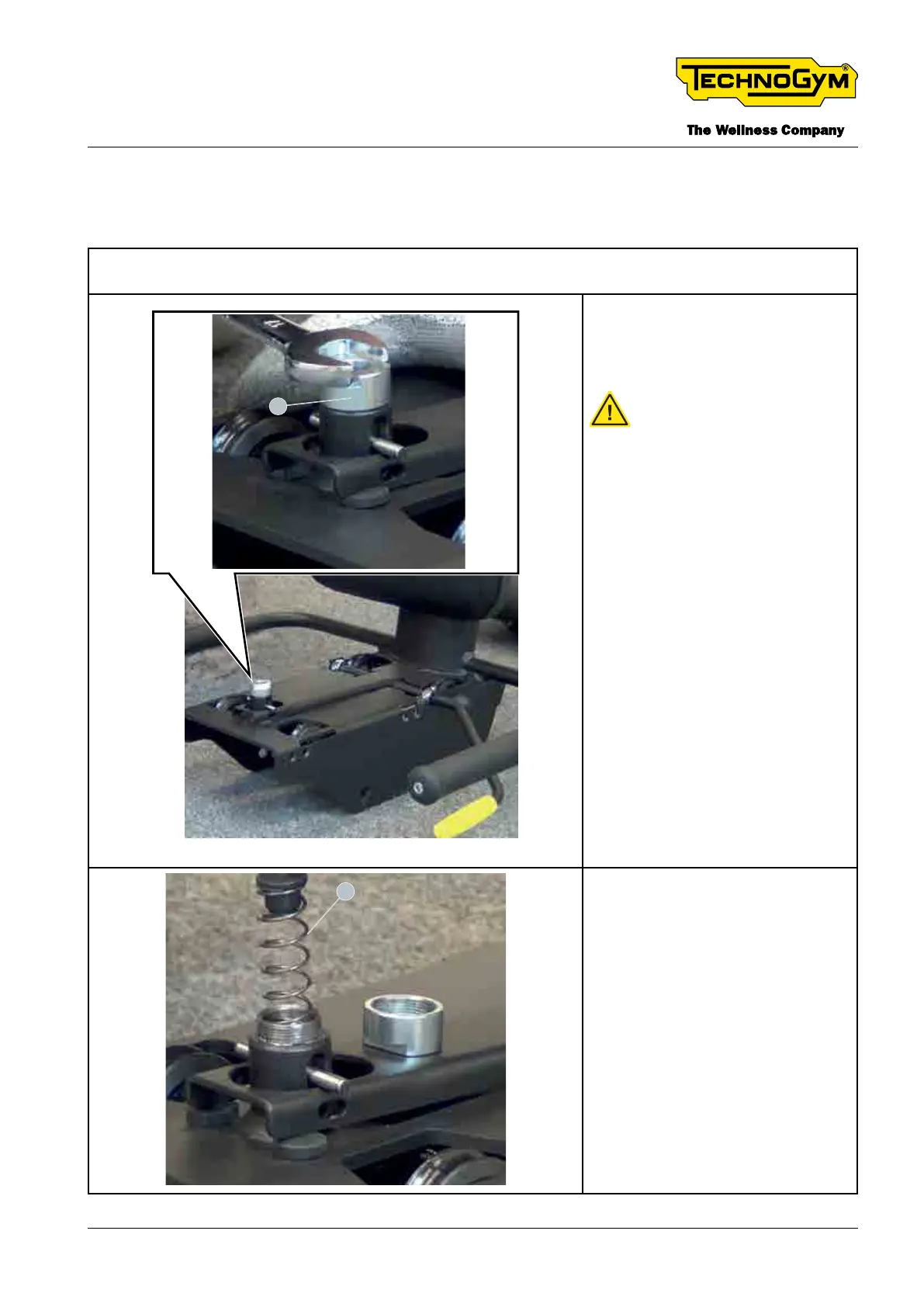

2. Remove the threaded cap
[9]. (TOOL: 17 mm open
end wrench).
CAUTION: During the
dismantling, pay at-
tention to the spring
that press against the
threaded cap.
9a
3. Remove the spring [9a].
