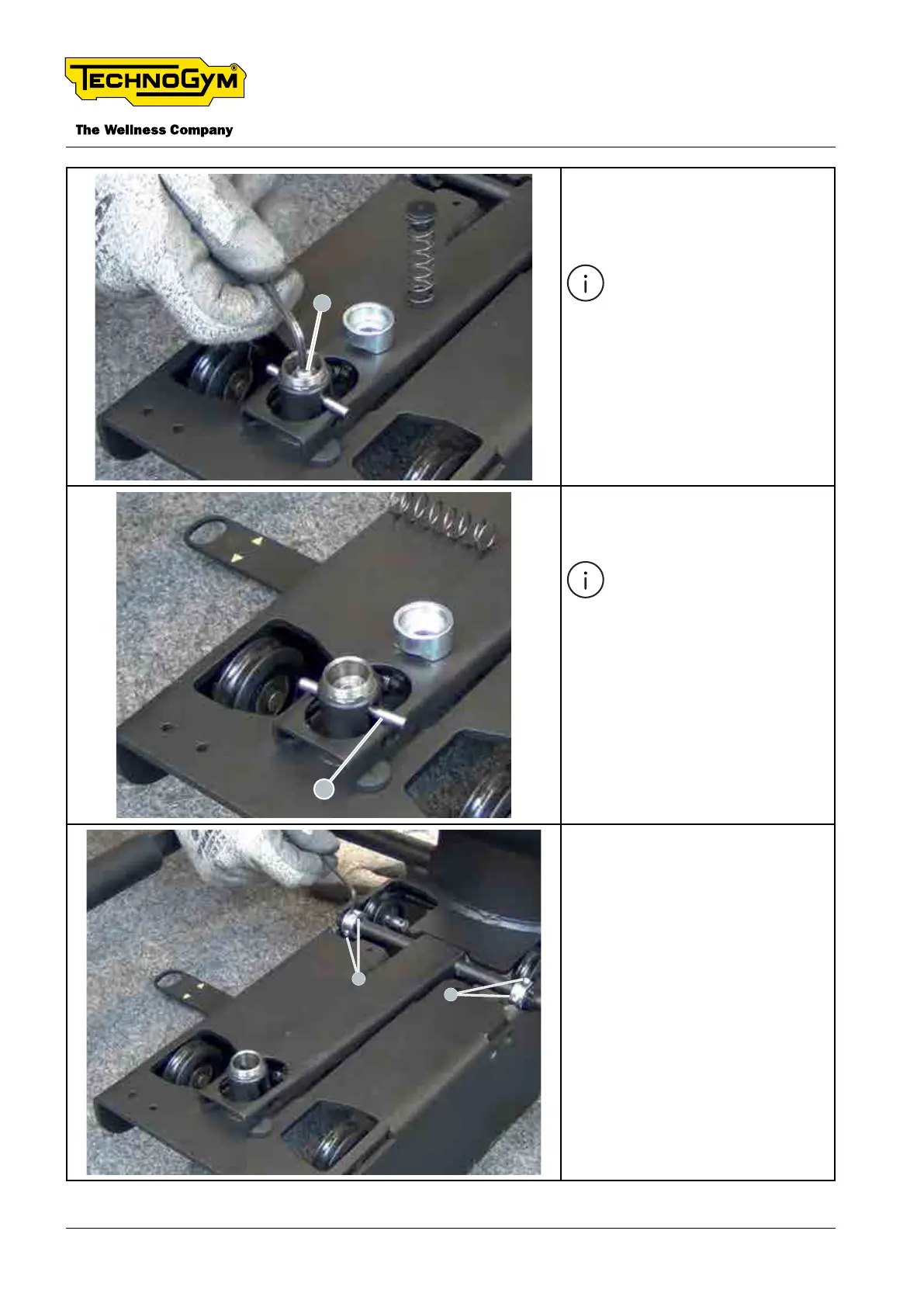

4. Remove the grub screw
[9b]. (TOOL: 4 mm hexag-
onal key wrench).
During the reassembly
procedure apply medium
strength threadlocker on
the grub screw.
9e
5. Remove the cylindrical pin
[9e] as shown in the gure.
During the reassembly pro-
cedure apply some gener-
ic grease on the pin.
9c
9c
6. Loosen the four grub
screws [9c] shown in the
gure. (TOOL: 3 mm hexa-
gon key wrench).
