To reassemble the seat sliding group, proceed as follows:
a. Apply some generic grease on the sliding group
b. Insert a wrench into one of the three holes (see point 3 above) and slide the seat slid-
ing group downward. Insert the pin on the rear side of the seat to compress the gas
spring and lock the carriage.
c. Insert the seat [8] into the machine frame.
d. Fasten the group in place with the two screws [8a].
e. Remove the wooden supports lifting the machine by more than one person and place
the machine on the ground.
f. Proceed with assembling the seat.

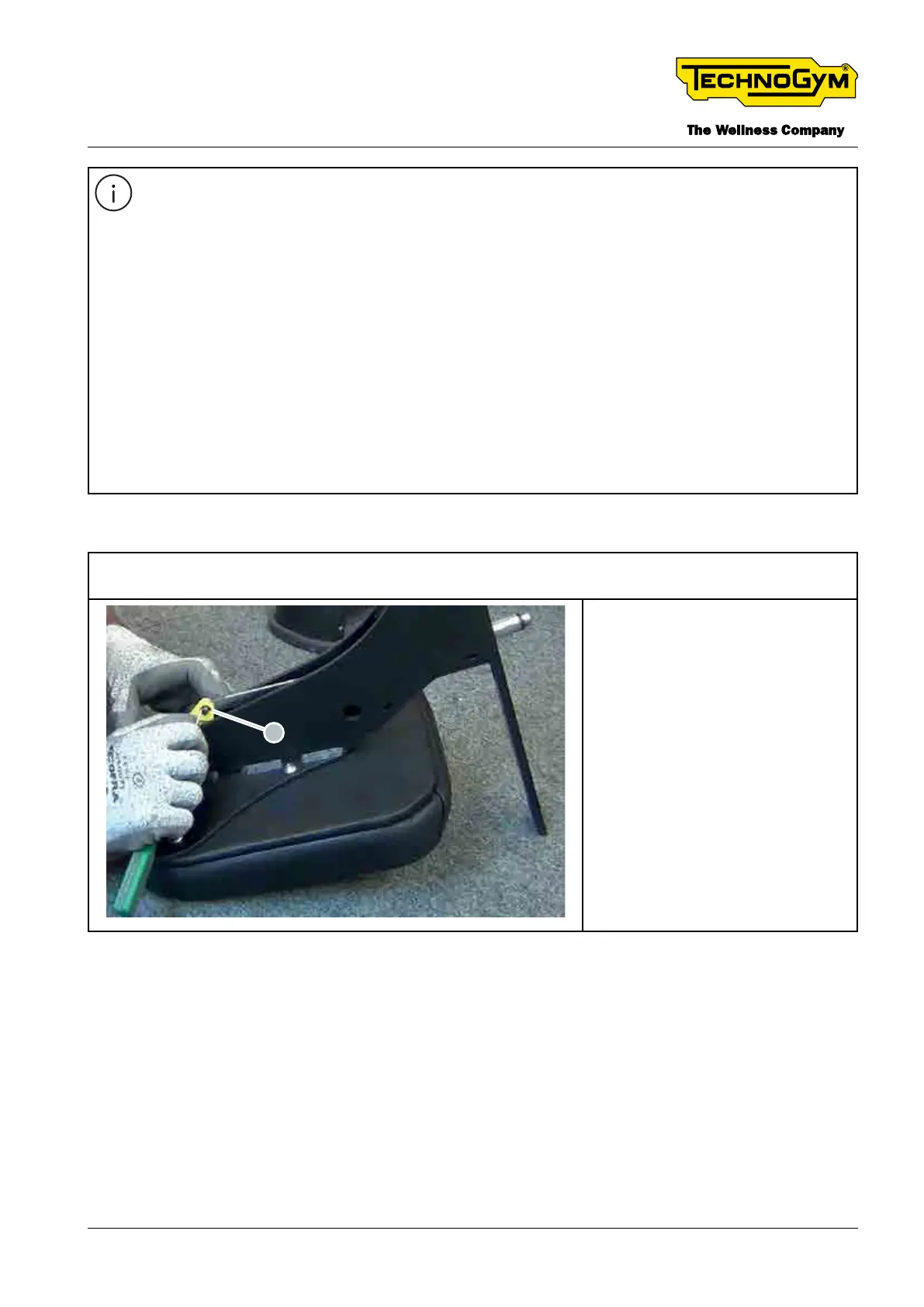

9.2.8.1 DISASSEMBLING THE LEVER
1. Perform the steps from 1 to 4 described in the paragraph “8.2.8 Disassembling the seat
sliding group”
9
2. Remove the snap ring [9].
(TOOL: at screwdriver).
SELECTION 700 Technical Service Guide
Rev. 2.0
- 183 -Document uncontrolled when printed
