Technogym SELECTION 700 - Disassembling the Seat Guide

8.2.12 DISASSEMBLING THE SEAT GUIDE
1. Perform the steps described in the paragraph “7.2.6 Disassembling the seat and the back-
rest assembly”
To disassemble only the guide limit stop it is not necessary to remove the seat/backrest
assembly.

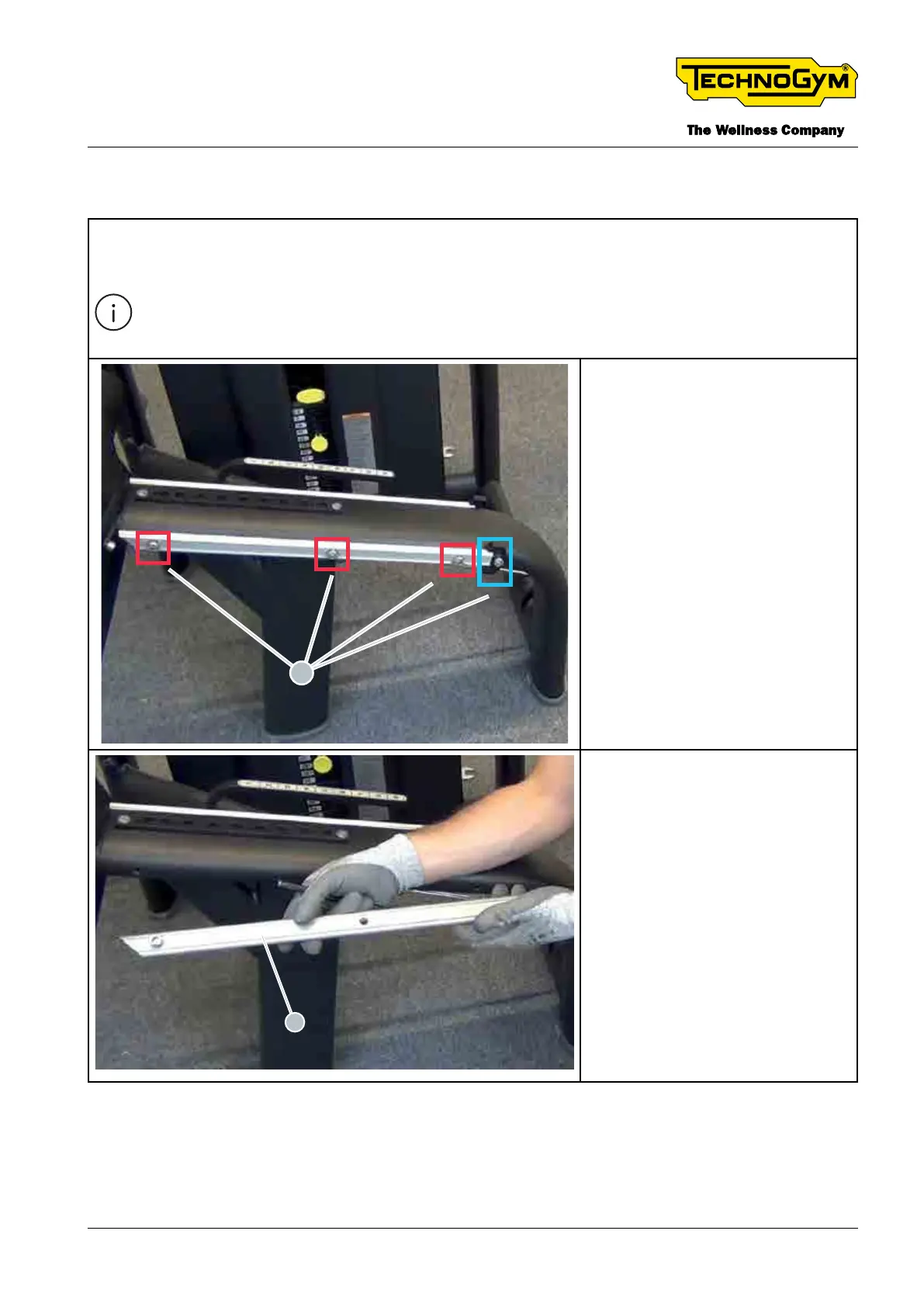

11b
2. Remove the limit stop (high-
lighted in blue) and the
three screws (highlighted
in red) [11b]. (TOOL: 8 mm
hexagon key wrench).
11c
3. It’s now possible to remove
the guide [11c].
SELECTION 700 Technical Service Guide
Rev. 2.0
- 141 -Document uncontrolled when printed
