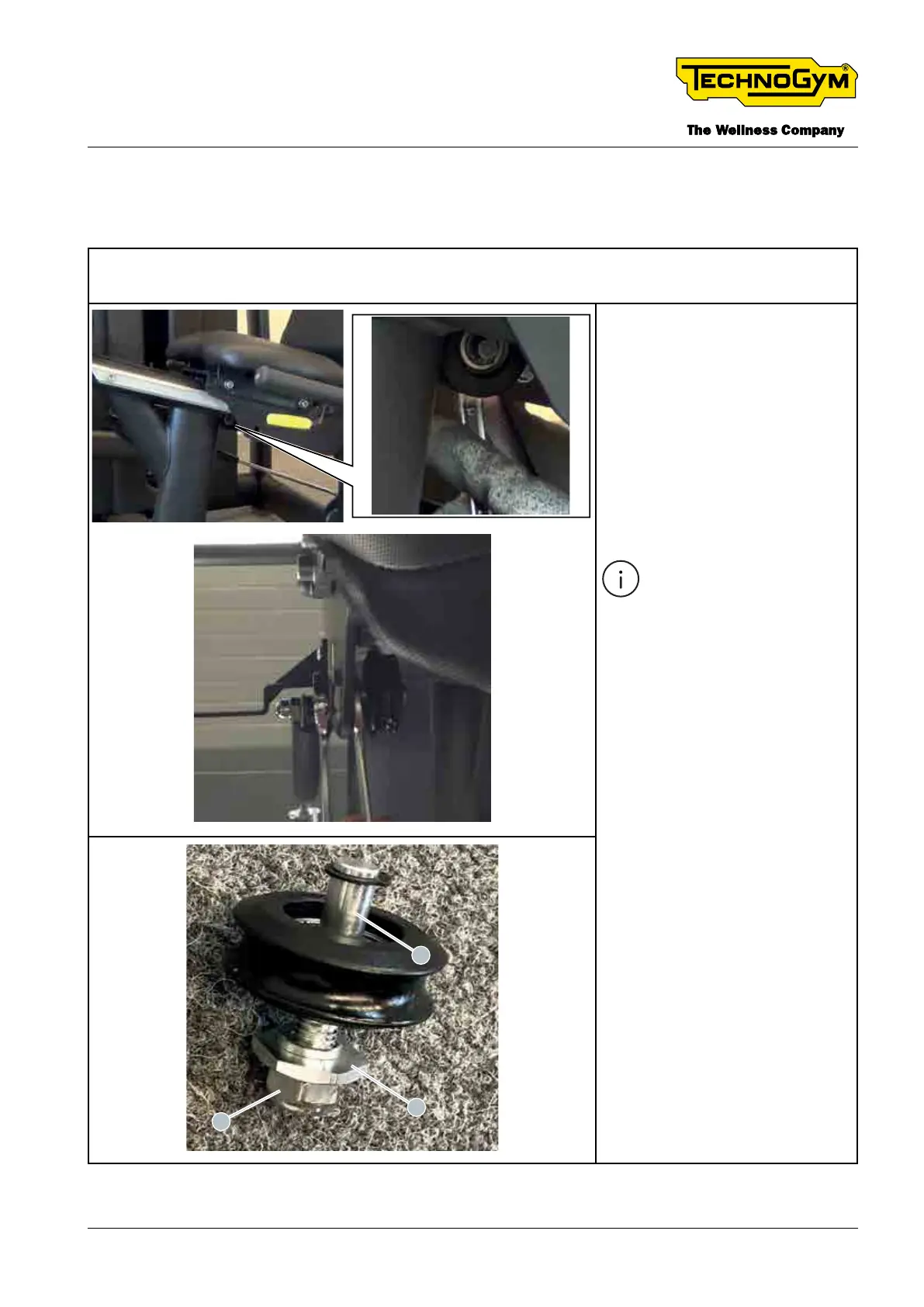

Technogym SELECTION 700 - Disassembling the Eccentric and the Lower Wheel on the Right Side

8.2.5 DISASSEMBLING THE ECCENTRIC AND THE LOWER
WHEEL ON THE RIGHT SIDE
1. Bring the seat to the end position (9) and block it to the frame. (TOOL: adjustable strap /
belt).
2. Unscrew the self-locking
nut that x the pin to the
frame. (TOOL: 2x17 mm
open end wrench).
See the gure at the side
for a detailed view of the
positioning of the two
wrenches
3. It’s now possible to re-
move the eccentric [5b]
and pull out the pin [5a]
with the wheel, the shim
ring and the spacer.
5
5a
5b
