3a

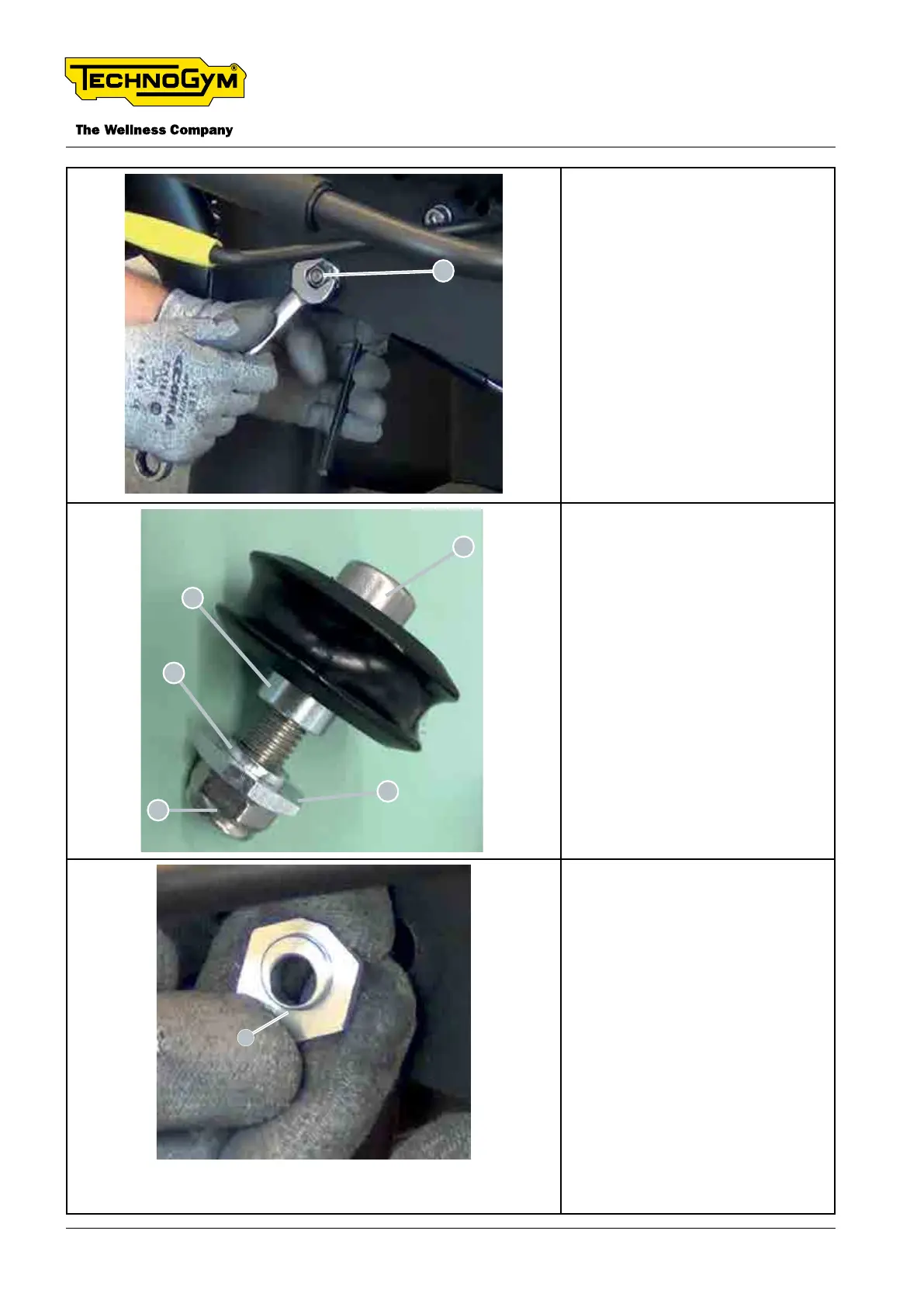

2. Remove the nut [3a].
(TOOL: 17 mm open end
wrench + 6 mm hexagon
key wrench).
4
3a
3b
3c
3d
3. It’s now possible to pull
out the screw [4] with the
wheel, the spacer [3c] and
the shim ring [3d]. Then re-
move the eccentric [3b].
At the side, a detailed view of the
lower wheel and its all compo-
nents, on the left side.
3b
Detailed view of the eccentric
[3b].
SELECTION 700 Technical Service Guide
Rev. 2.0
- 132 - Document uncontrolled when printed
