Technogym SELECTION 700 - Disassembling the Additional Weight; Disassembling the Weight Stack

7.2.3 DISASSEMBLING THE ADDITIONAL WEIGHT
1. Perform all the necessary steps described in the paragraph “6.2.2 Disassembling the
guards”
7
7a

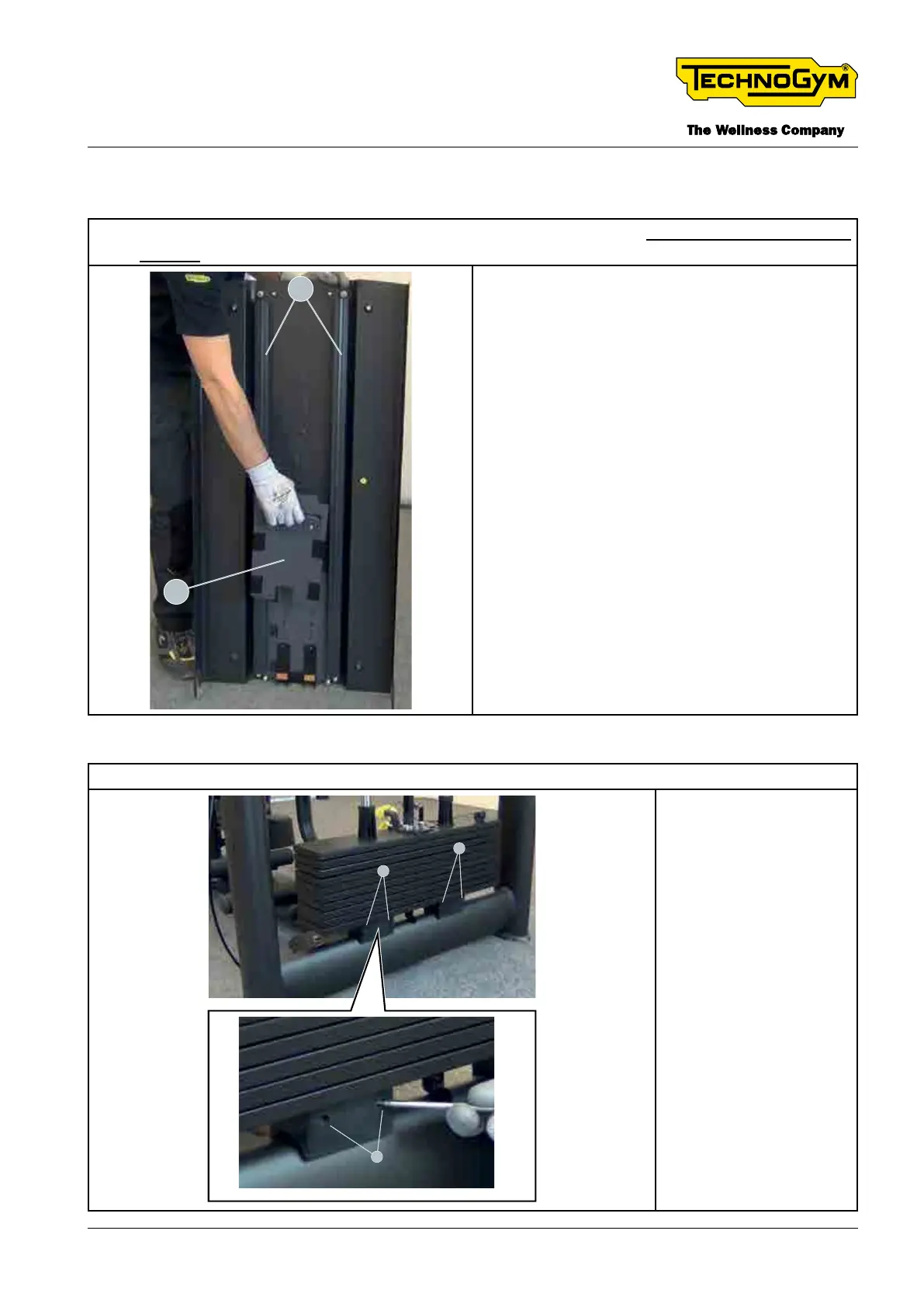

2. Remove the additional weight [7] extract-
ing it from the relative guides [7a].
7.2.4 DISASSEMBLING THE WEIGHT STACK
1. Perform all the steps described in the previous paragraph “6.2.2 Disassembling the guards”
8a
8b
8a
2. Remove the four
grub screws [8a],
[8b] that xing
each bar to the
weight stack.
(TOOL: 4 mm hex-
agon key wrench)
SELECTION 700 Technical Service Guide
Rev. 2.0
- 97 -Document uncontrolled when printed
