Technogym SELECTION 700 - Disassemble the Flange, the Spring and the Piston

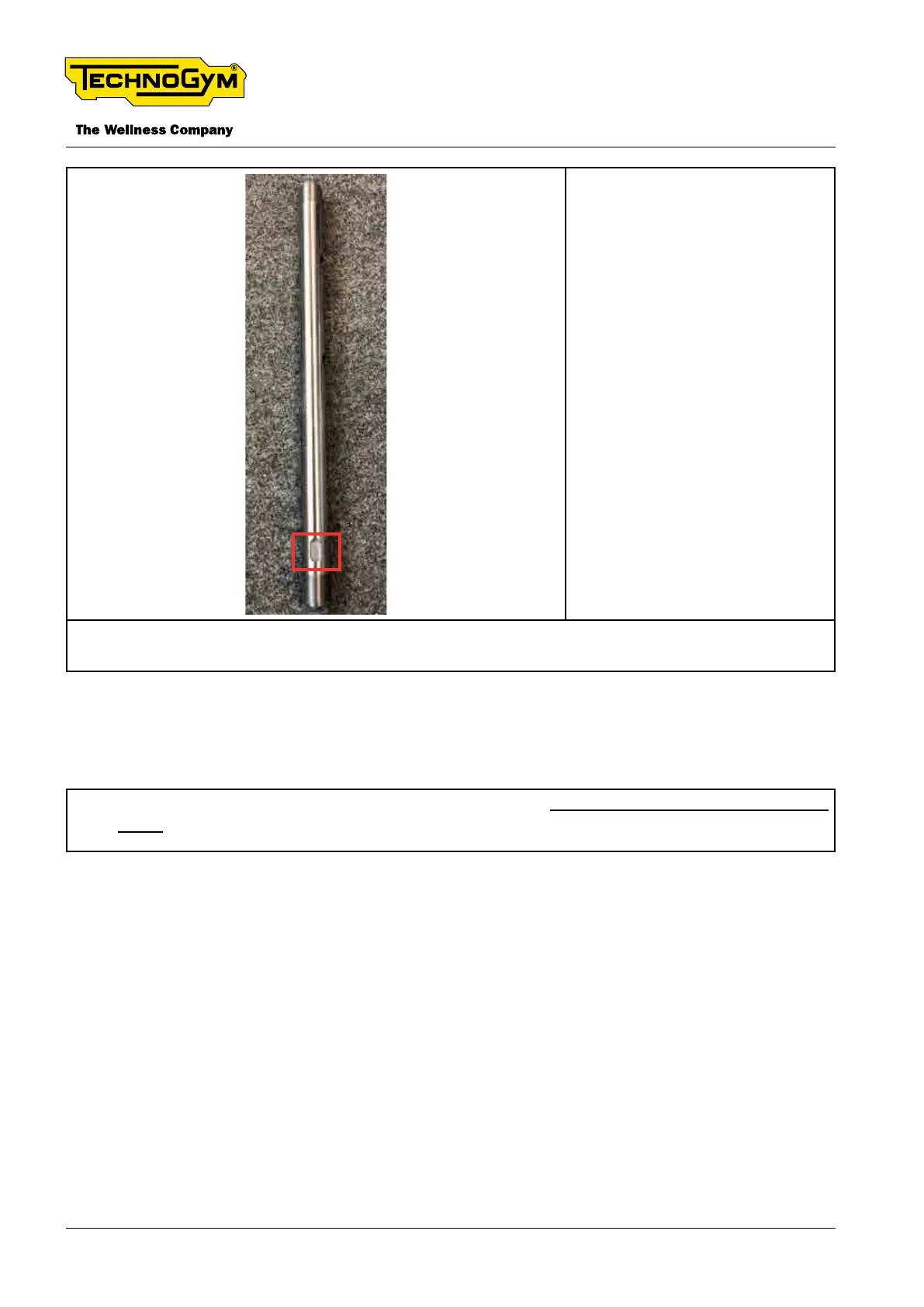

9. Align everything and screw
the pin until you see the in-
sert. (TOOL: rubber ham-
mer + socket wrench for
ring nuts- M25). Then re-
assemble the grub screw.
(TOOL: 4 mm hexagon key
wrench) and the ring nut.
(TOOL: Hook wrench with
square nose).
10. Reassemble the other components following the aforementioned instructions in reverse
order.
7.2.14 DISASSEMBLE THE FLANGE, THE SPRING AND THE
PISTON
1. Perform the steps 1 and 2 described in the paragraph “6.2.9 Disassembling the unlocking
lever”
SELECTION 700 Technical Service Guide
Rev. 2.0
- 122 - Document uncontrolled when printed
