Technogym SELECTION 700 - Disassembling the Shaft

15e
15f

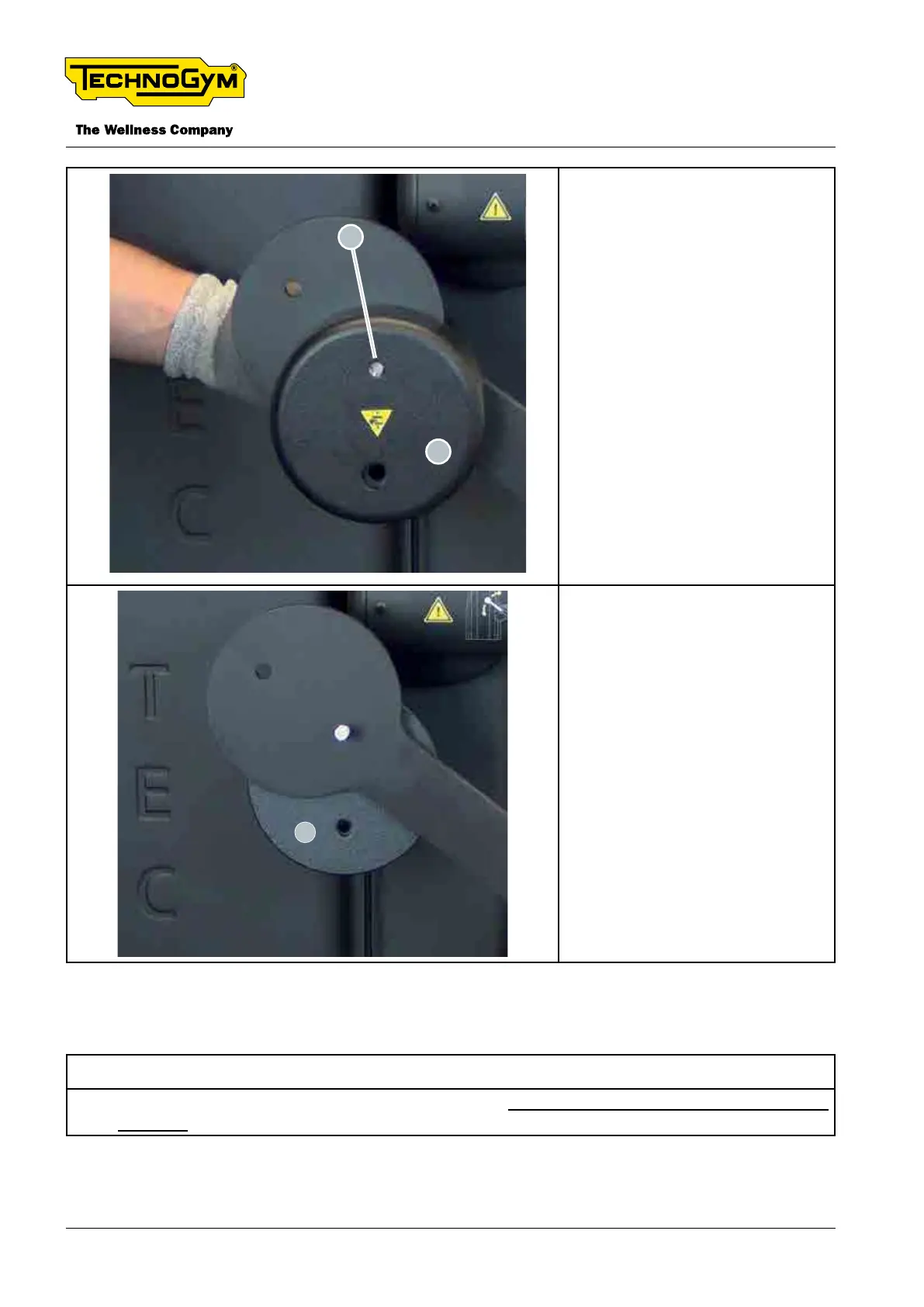

3. Unscrew the screw [15e]
without removing it (TOOL:
8 mm hexagon key wrench)
and disassemble the ex-
ternal side of the counter-
weight [15f].
15g
4. It’s now possible to remove
the inner side of the coun-
terweight [15g].
8.2.19 DISASSEMBLING THE SHAFT
1. Perform all the steps described in the paragraph “7.2.18 Disassembling the counterweight”
2. Perform all the steps described in the paragraph “7.2.14 Disassembling the popliteus-rest
padding”
