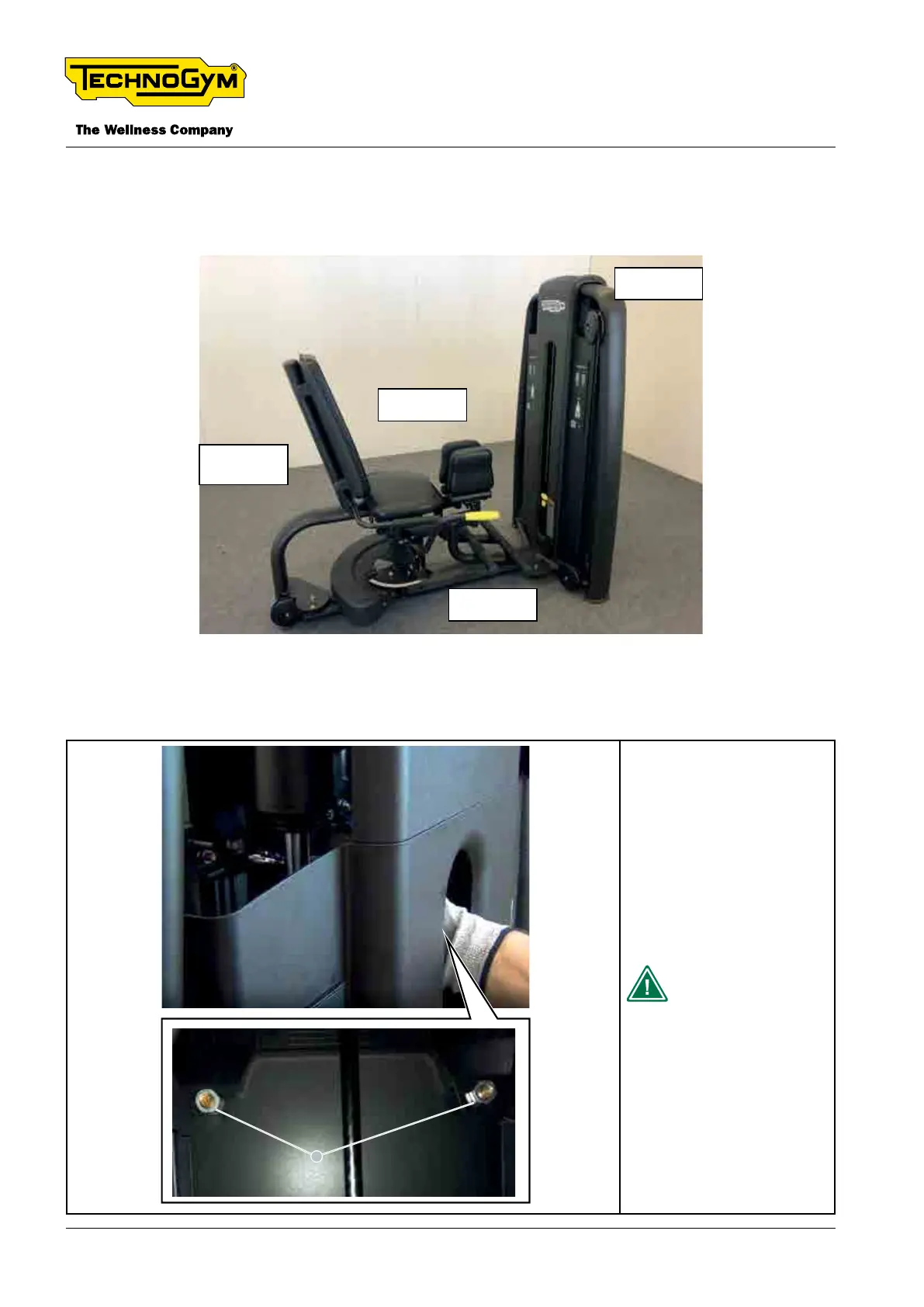

7.2 MNOC- ABDUCTOR / ADDUCTOR
7.2.1 EQUIPMENT REFERENCE
REAR PART
FRONT PART
RIGHT SIDE
LEFT SIDE
Fig. 76 Equipment reference
7.2.2 DISASSEMBLING THE GUARDS
1
1. Remove the two
nuts and the relative
spacers [1] from the
rear casing.(TOOL:
Ratchet with 13 mm
hexagonal socket).
Repeat the same
procedure on the
opposite side.
ATTENTION:
During the reas-
sembly proce-
dure do not over
tighten the nuts
to preserve the
casing.
SELECTION 700 Technical Service Guide
Rev. 2.0
- 90 - Document uncontrolled when printed
