12.4 THE LEVERS OF DUAL-AXIS MACHINES ARE NOT
ALIGNED
This operation applies to MNNC- PECTORAL/REVERSE FLY. In analog way this opera-
tion applies to MNKC DELTS MACHINE, MNHC LOW ROW, MNEC SHOULDER PRESS,
MNGC VERTICAL TRACTION, MNFC CHEST PRESS.
To align the levers of dual-axis machines, you may adjust the position of the two limit stop against
which the machine levers rest, as indicated below:
• loosen the counter-nut [a] on both sides, using a 17-gauge wrench;
• tightening or loosening the limit stop [b] until the levers are aligned.
• when the adjustment is complete, tighten the counter-nut [a] once again.
a
b

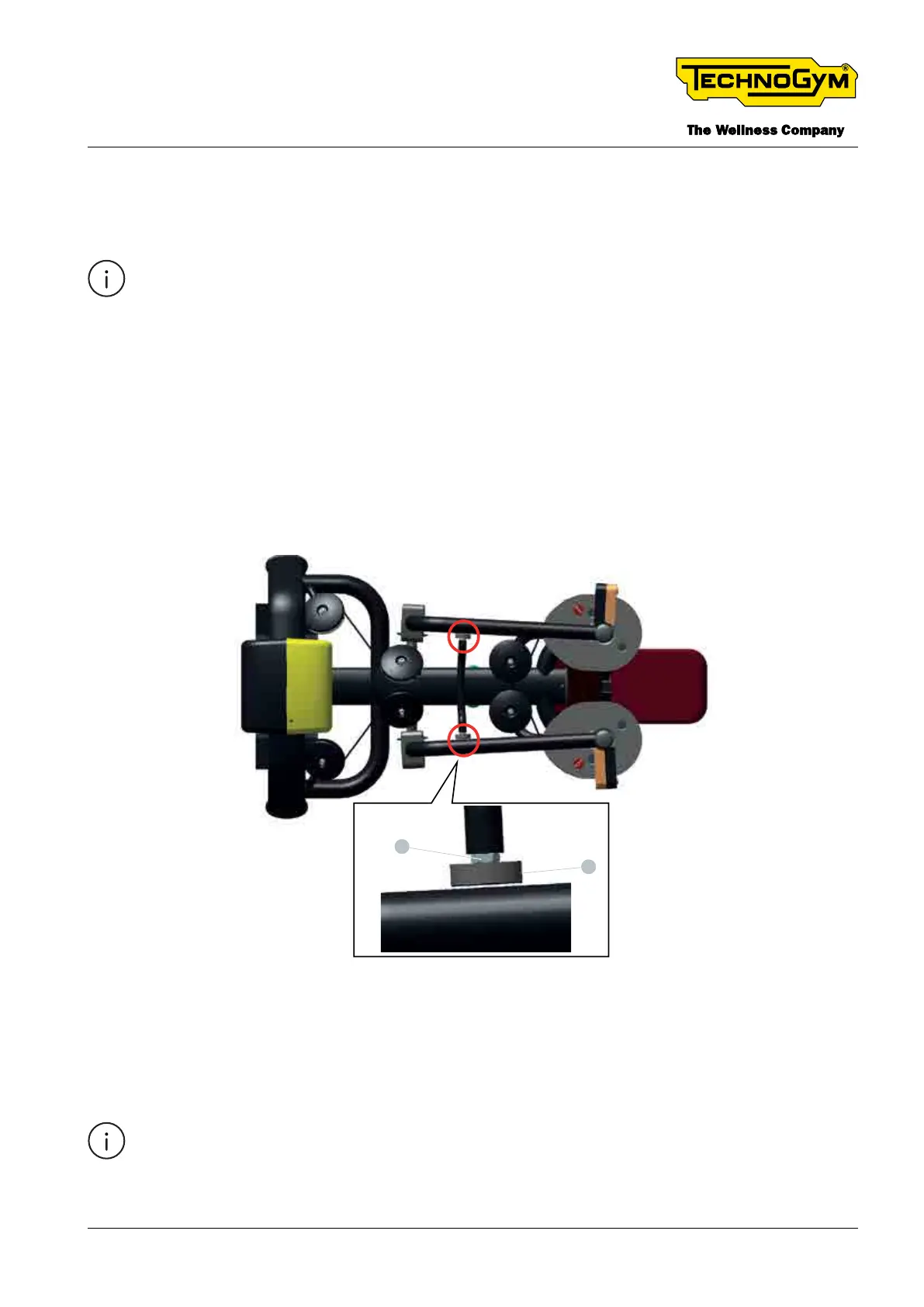

Fig. 101- Detailed view of the limit stop (TOP VIEW- MNNC PECTORAL/REVERSE FLY)
12.5 ADJUSTING THE POSITION OF THE LIMIT STOP
BUSHINGS
This operation applies to MNNC- PECTORAL/REVERSE FLY, MNFC- CHEST PRESS, MN-
DC-MULTIHIP, MNEC- SHOULDER PRESS, MNGC- VERTICAL TRACTION, MNHC- LOW
ROW, MNLC- LAT MACHINE.
