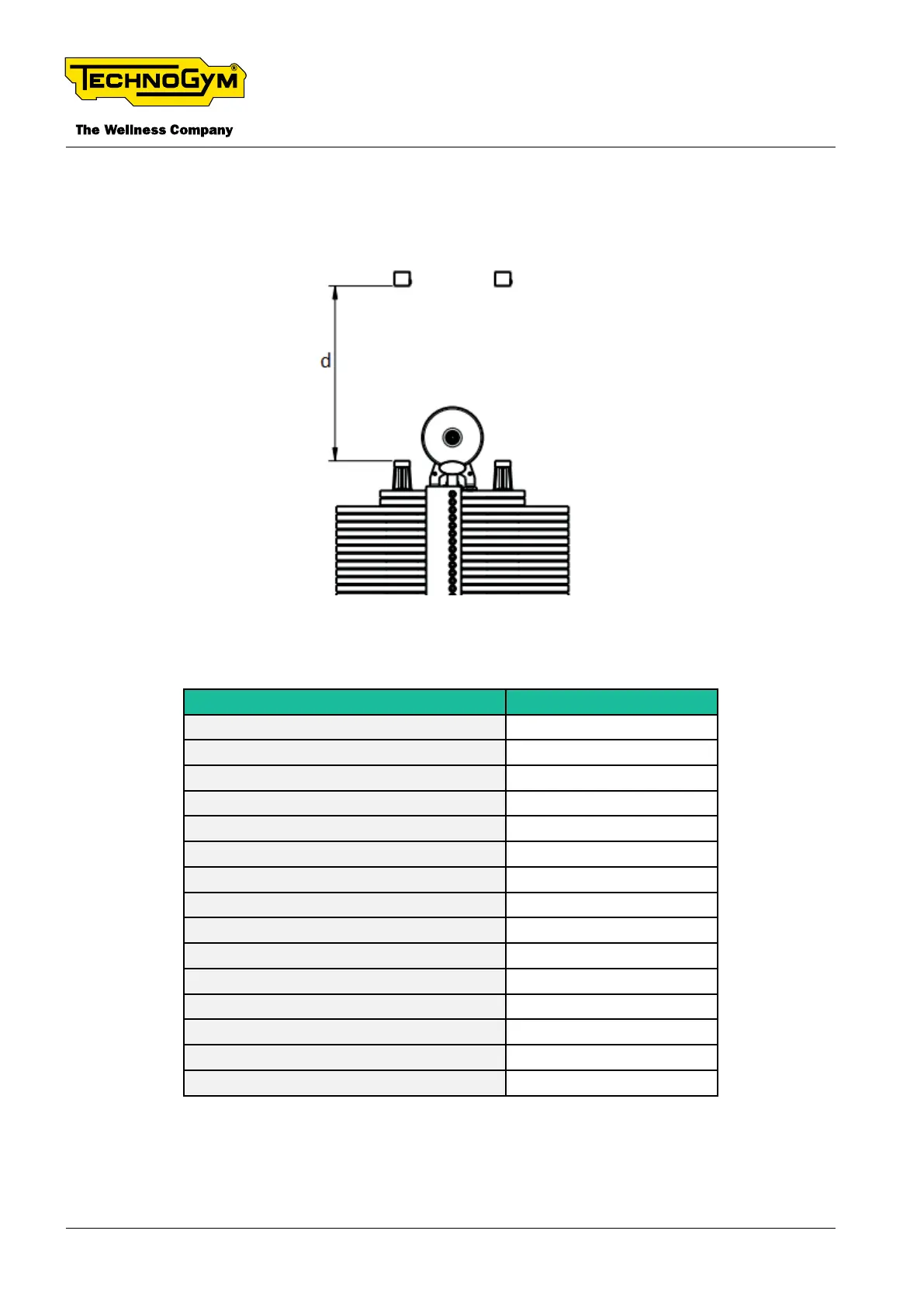

Adjusting the position of the limit stop bushings limits the stroke of the top weight plate, to avoid
possible breakage of mechanical parts due to overly long strokes by the weight stack. Therefore,
with d as the distance between the top weight plate and the bottom of the limit stop bushing, as
shown in the gure below:
Fig. 102
This should be adjusted as shown in the table below:
MACHINES DISTANCE (mm)
MNAC- LEG PRESS -
MNBC- ABDOMINAL CRUNCH -
MNFC- CHEST PRESS 390
MNKC- DELTS MACHINE -
MNDC- MULTIHIP 340
MNEC- SHOULDER PRESS 480
MNGC- VERTICAL TRACTION 550
MNHC- LOW ROW 445
MNLC- LAT MACHINE 1240
MNIC- LEG CURL -
MNJC- LEG EXTENSION -
MNCC- LOWER BACK -
MNMC- LEG EXTENSION/CURL -
MNOC- ABDUCTOR / ADDUCTOR -
MNNC- PECTORAL/REVERSE FLY 400
Tab. 49
SELECTION 700 Technical Service Guide
Rev. 2.0
- 220 - Document uncontrolled when printed
