Technogym SELECTION 700 - Disassembling the Cam and the Upper Lever Assembly

4c

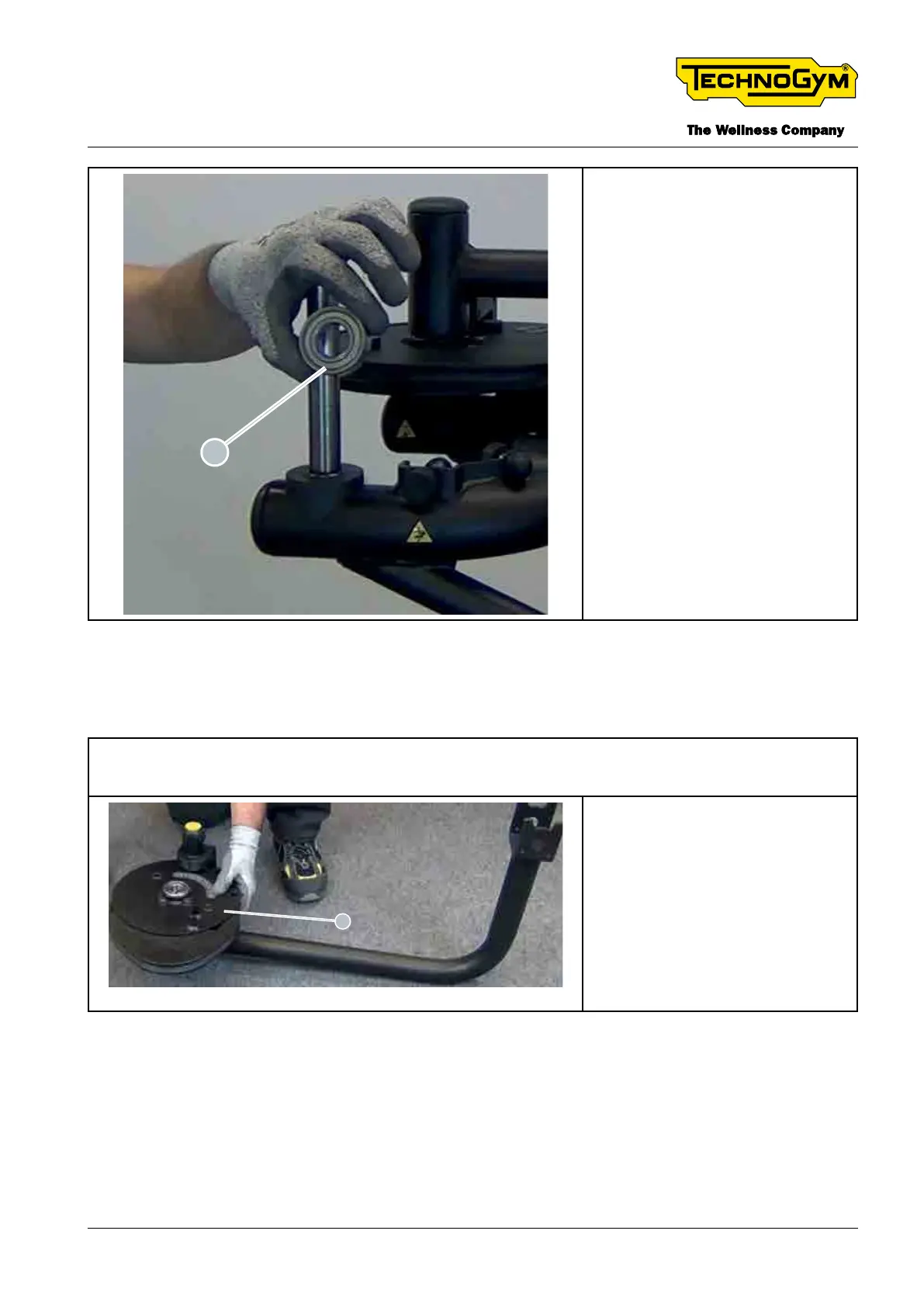

10. It’s now possible to remove
the deep groove ball bear-
ing [4c].
9.2.4 DISASSEMBLING THE CAM AND THE UPPER LEVER
ASSEMBLY
1. Perform all the steps described in the paragraph “8.2.3 Disassembling the upper lever”
5
2. Raise the yellow plug and
disassemble the cam [5].
SELECTION 700 Technical Service Guide
Rev. 2.0
- 173 -Document uncontrolled when printed
