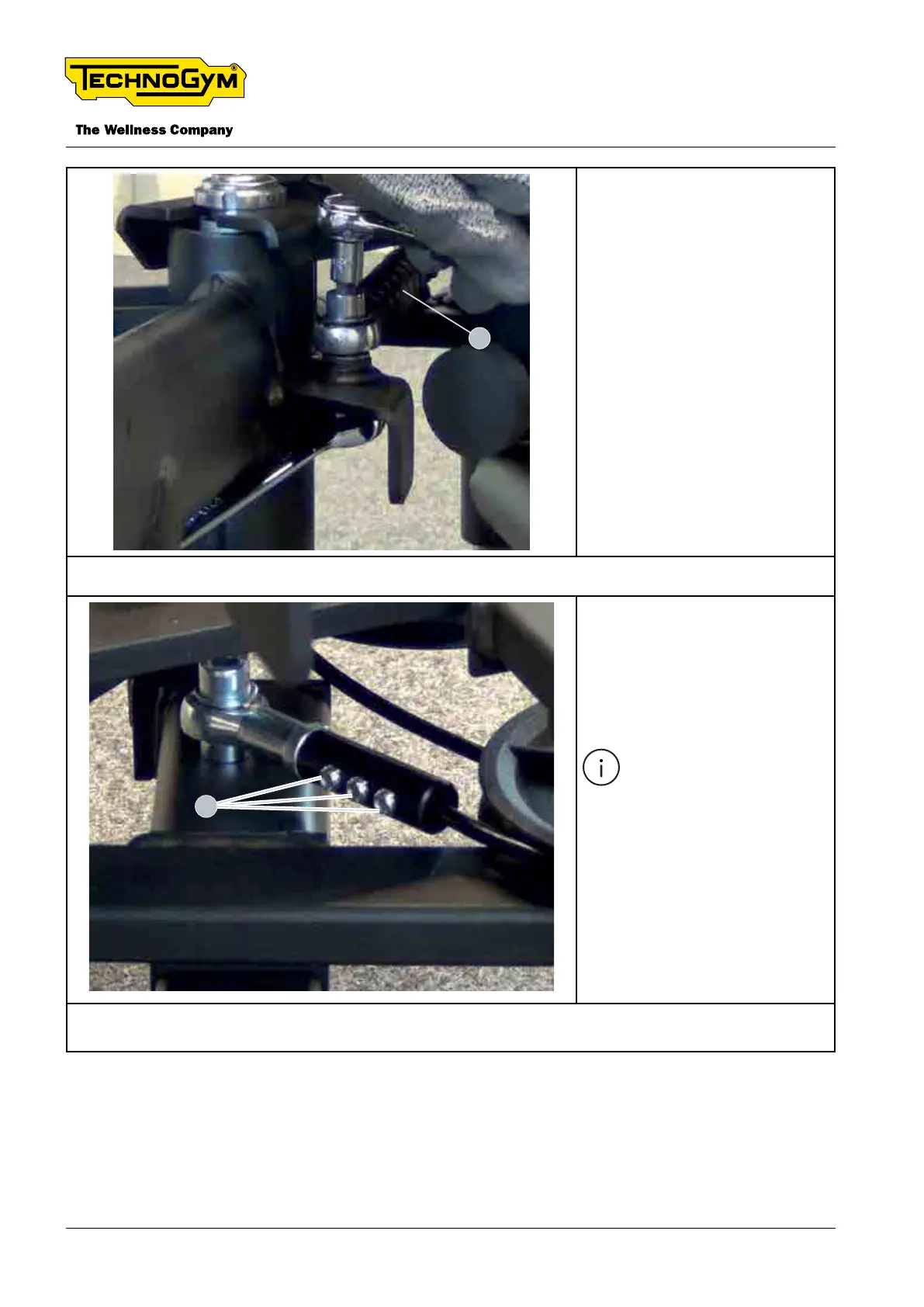

2. Disassemble the tie rod
[15]. (TOOL: 17 mm open
end wrench + ratchet with
8 mm hexagonal bit).
3. Select the minimum workload with the pin.
10c
4. Loosen the three grub
screws [10c]. (TOOL:
4 mm hexagon key
wrench).
During the reassembly,
tighten the grub screws
[10c]. (TOOL: torque
wrench- tightening tor-
ques: 17 Nm [12,5 lbf-
ft]).
5. Select a medium workload with the pin. Use the side lever to remove the cable.
SELECTION 700 Technical Service Guide
Rev. 2.0
- 114 - Document uncontrolled when printed
