15c

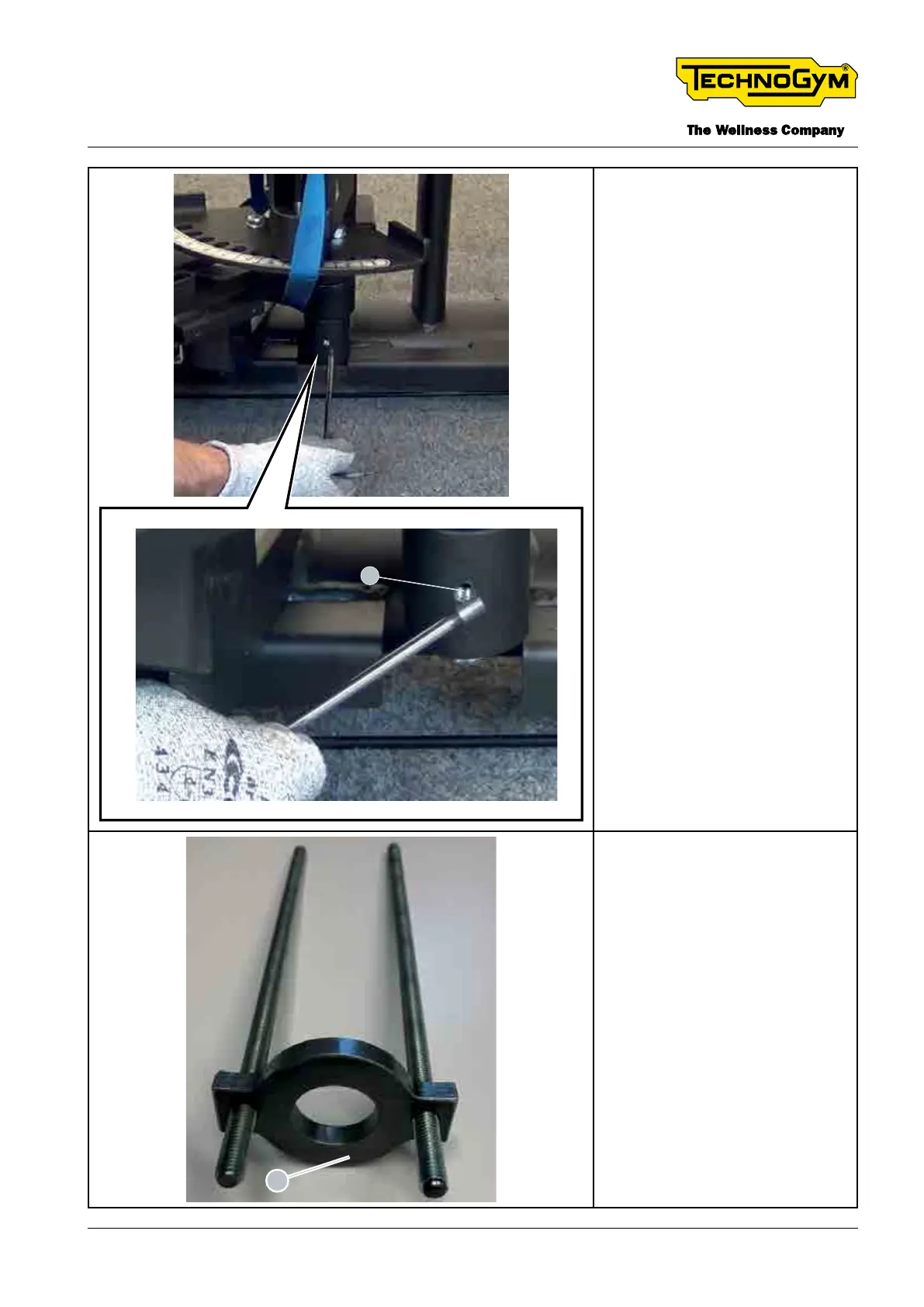

9. Remove the grub screw

[15c]. (TOOL: 4 mm hex-

agon key wrench).

15d

10. Position the puller [15d]

on the pin.

SELECTION 700 Technical Service Guide

Rev. 2.0

- 117 -Document uncontrolled when printed
