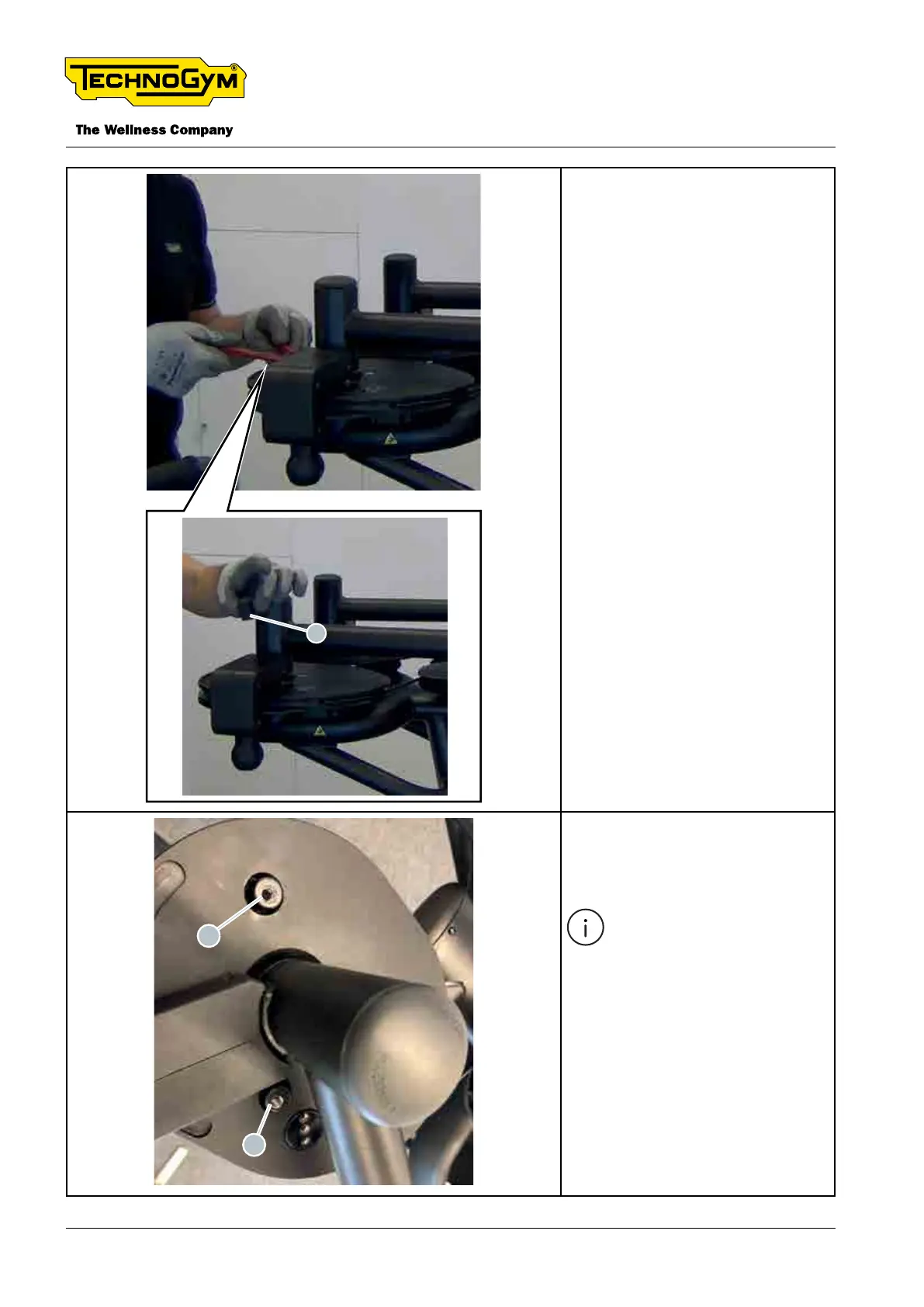

3b
2. Remove the stop cap
[3b]. (TOOL: Adjustable
self-locking pliers).
3a
3b
Detailed view of the holes under
the two stop caps previously re-
moved.
For the machines without
the two holes, cover the
machine with a cloth and
drill the frame with a 4 mm
drill bit, then with a 6.5 mm
drill bit and in the end with
a 8.5 mm drill bit per 1,5
cm. Simple thread desig-
nation: M10 ; Pitch: 1,5
mm. Then put a magnet
that will gather the shav-
ings of the frame.
