4

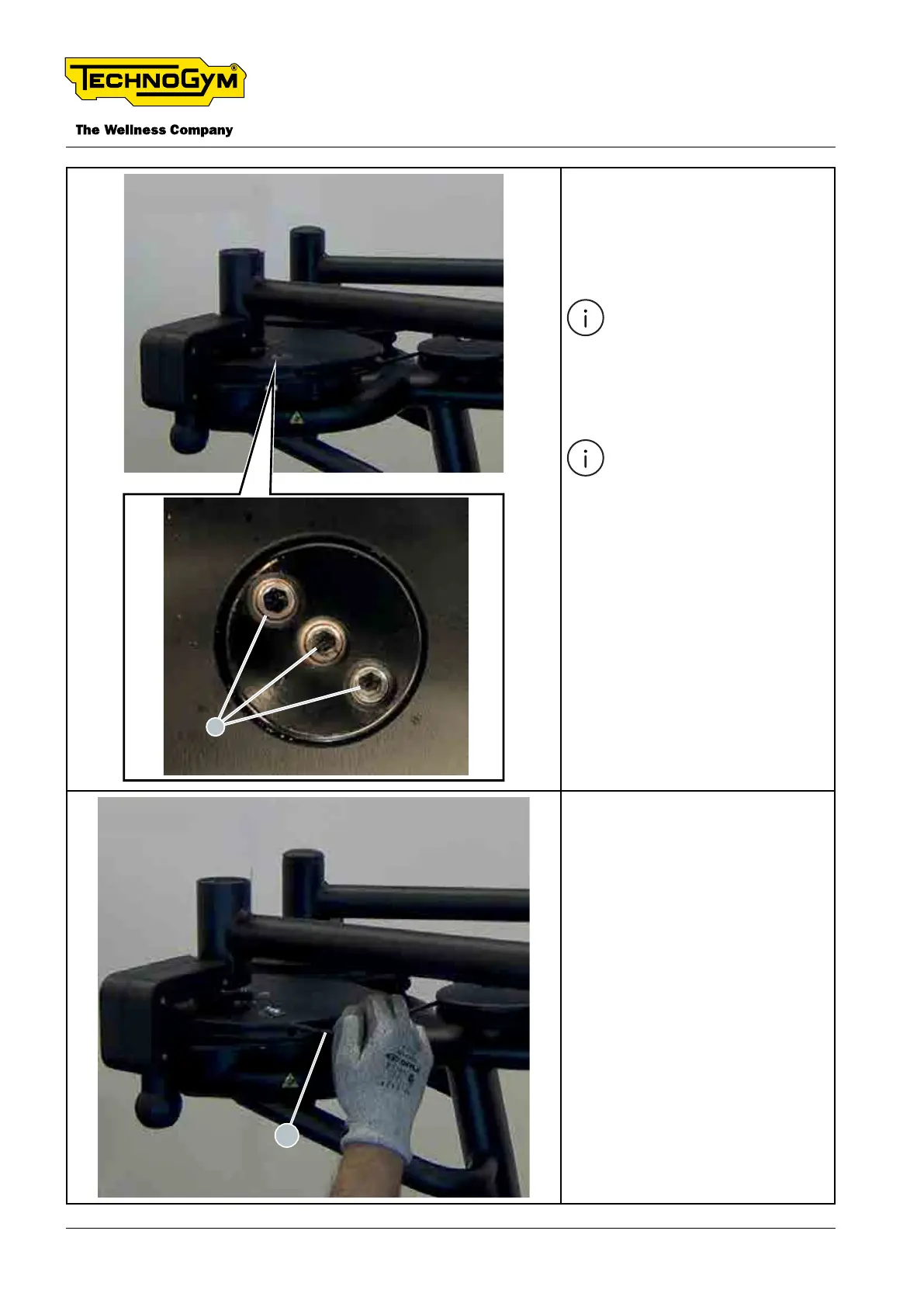

5. Remove the three grub
screws [4]. (TOOL: 4 mm
hexagon key wrench).
During the reassembly pro-
cedure of the cable, make
sure that it reaches the
last grub screw.
During the reassembly,
tighten the grub screws
[4]. (TOOL: torque
wrench- tightening tor-
ques: 17 Nm [12,5 lbf-ft]).
4a
6. Select the maximum work-
load with the pin and re-
move the cable [4a].
SELECTION 700 Technical Service Guide
Rev. 2.0
