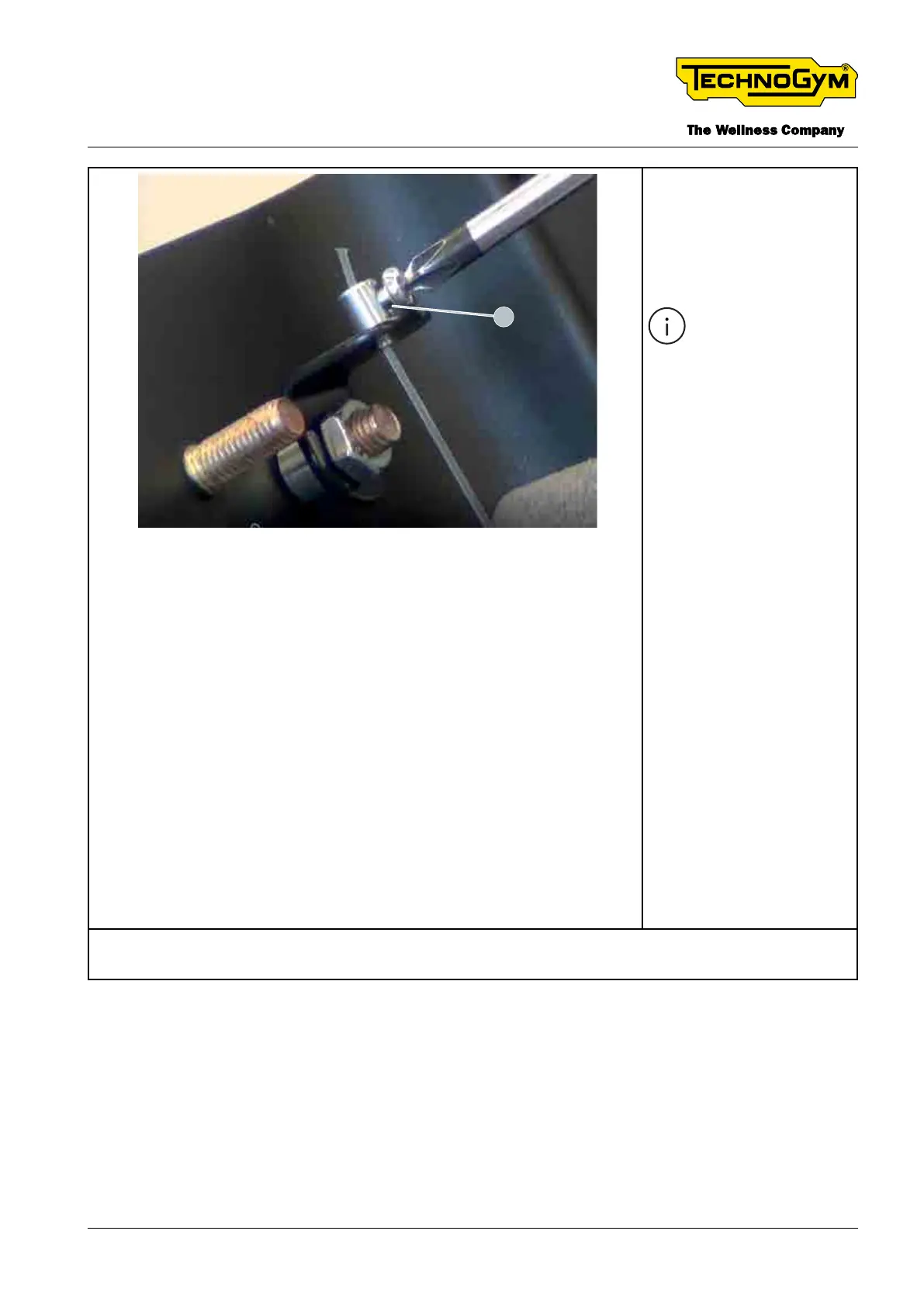

10. Remove the cable
clamp [6] from the
nylon cable. (TOOL:
Medium-sized Phil-
lips screwdriver).
During the reas-
sembly, insert the
lower end of the
nylon cable into
the central hole of
the bushing and
push the spring
with cable ties.
On the other end
of the nylon ca-
ble insert the ca-
ble clamp [6] at
a distance of d=1
cm [0.4’’] from the
end of the nylon
cable as shown at
the side. Tighten
the cable clamp
on the nylon ca-
ble (TOOL: torque
wrench- tighten-
ing torques: 0,5
Nm [0,37 lbf-ft]),
holding the cable
clamp with pliers.
Then remove the
cable ties previ-
ously inserted.
11. Extract the nylon cable from the bushing.
