Technogym WAVE EXCITE+ - ARM Board (A) Disassembly

Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.5
7.2.1.1. ARM board (A)

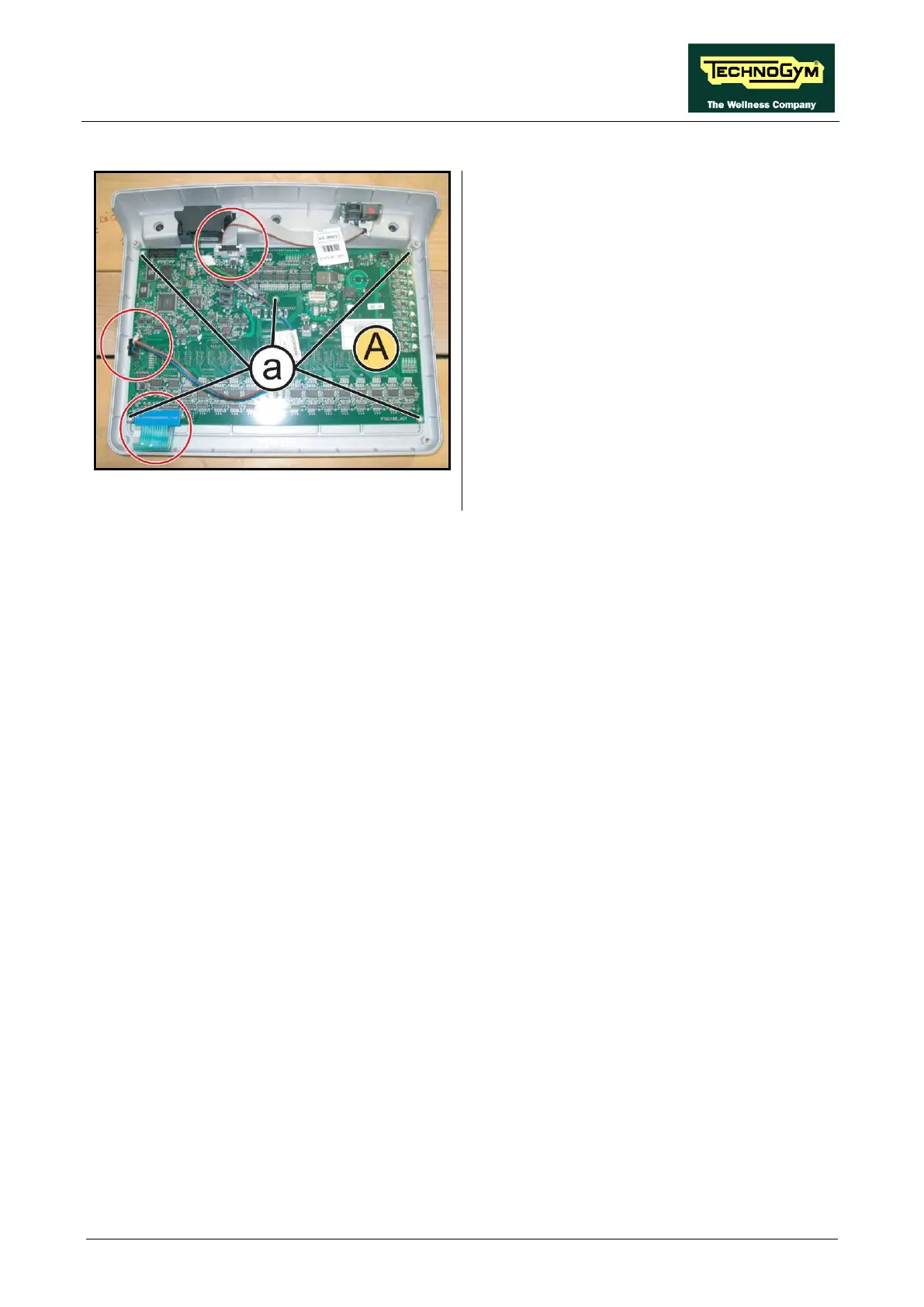

Figure 7.2-2
1.
Unplug the connectors highlighted in the
figure.
2. Back off the 5 screws (c)
using a medium
Phillips Screwdriver.
1. Remove the ARM board (A).
To reassemble the ARM board,
carry out the above steps in reverse order.
