7.10. DISASSEMBLING THE FOOTBOARDS

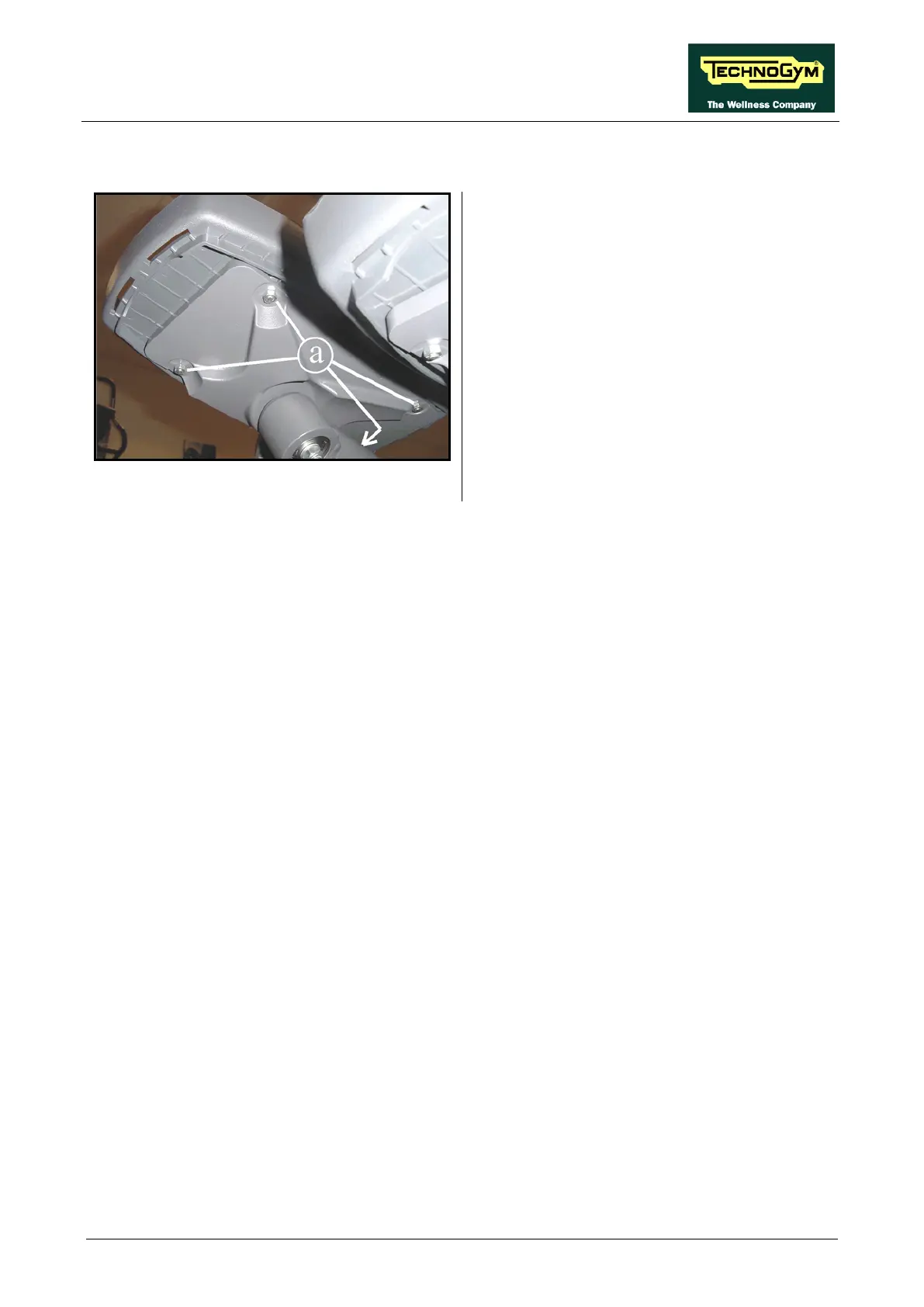

Figure 7.10-1
1. Back off the 4 nuts (a) with a 10mm wrench.
2. Remove the footboard.
To reassemble the footboards, carry out the
above steps in reverse order.
