Technogym WAVE EXCITE+ - Headphone Jack (F) Disassembly

Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.15
7.2.2.7. Headphone Jack (F)

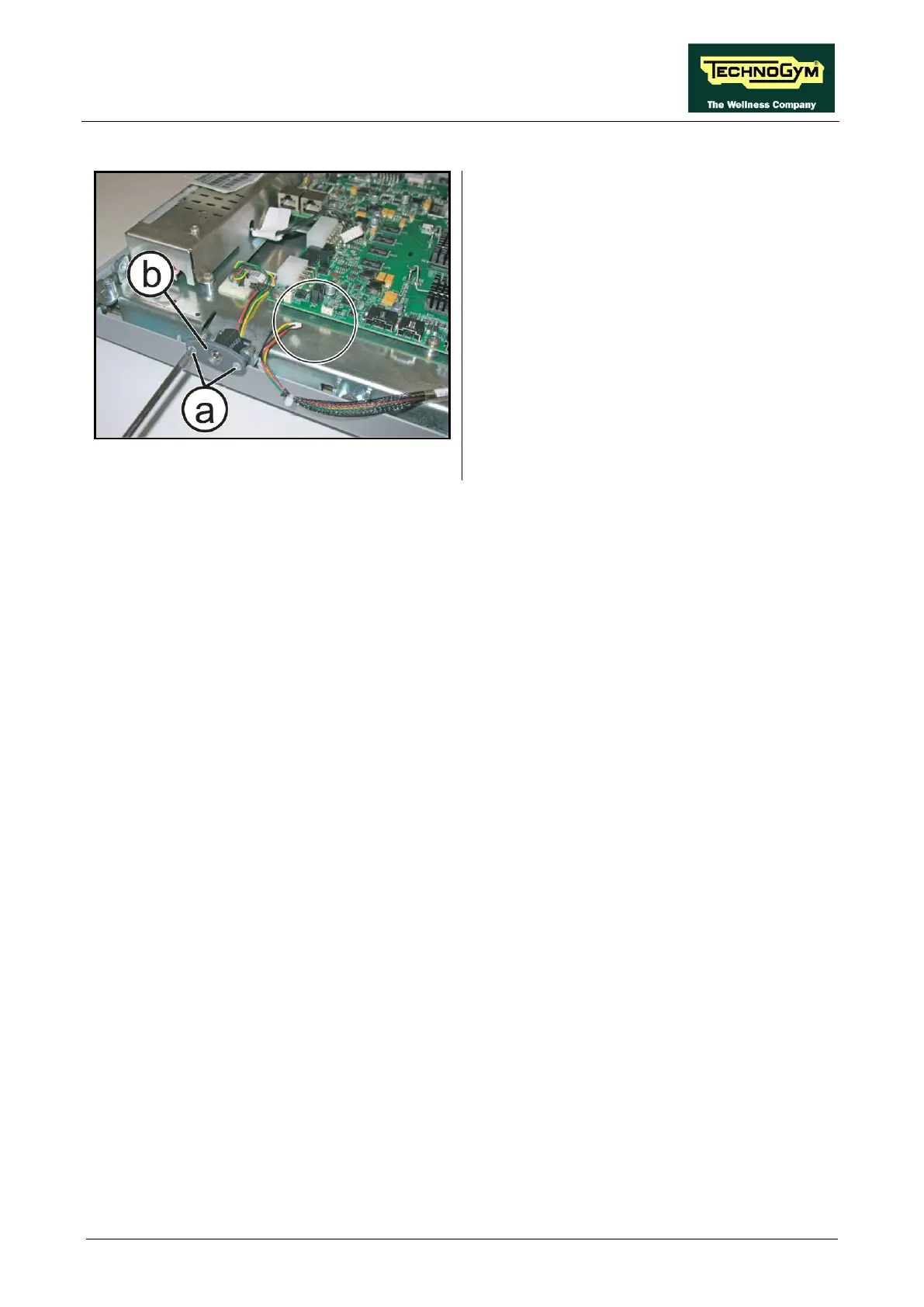

Figure 7.2-18
1. Unplug
the connector highlighted in the
figure.
2. Back off the 2 screws (a)
using a small
Phillips screwdriver.
3. Remove the Headphone Jack (F).
To reassemble the Headphone Jack,
follows the above steps in the reverse order.
