Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.25

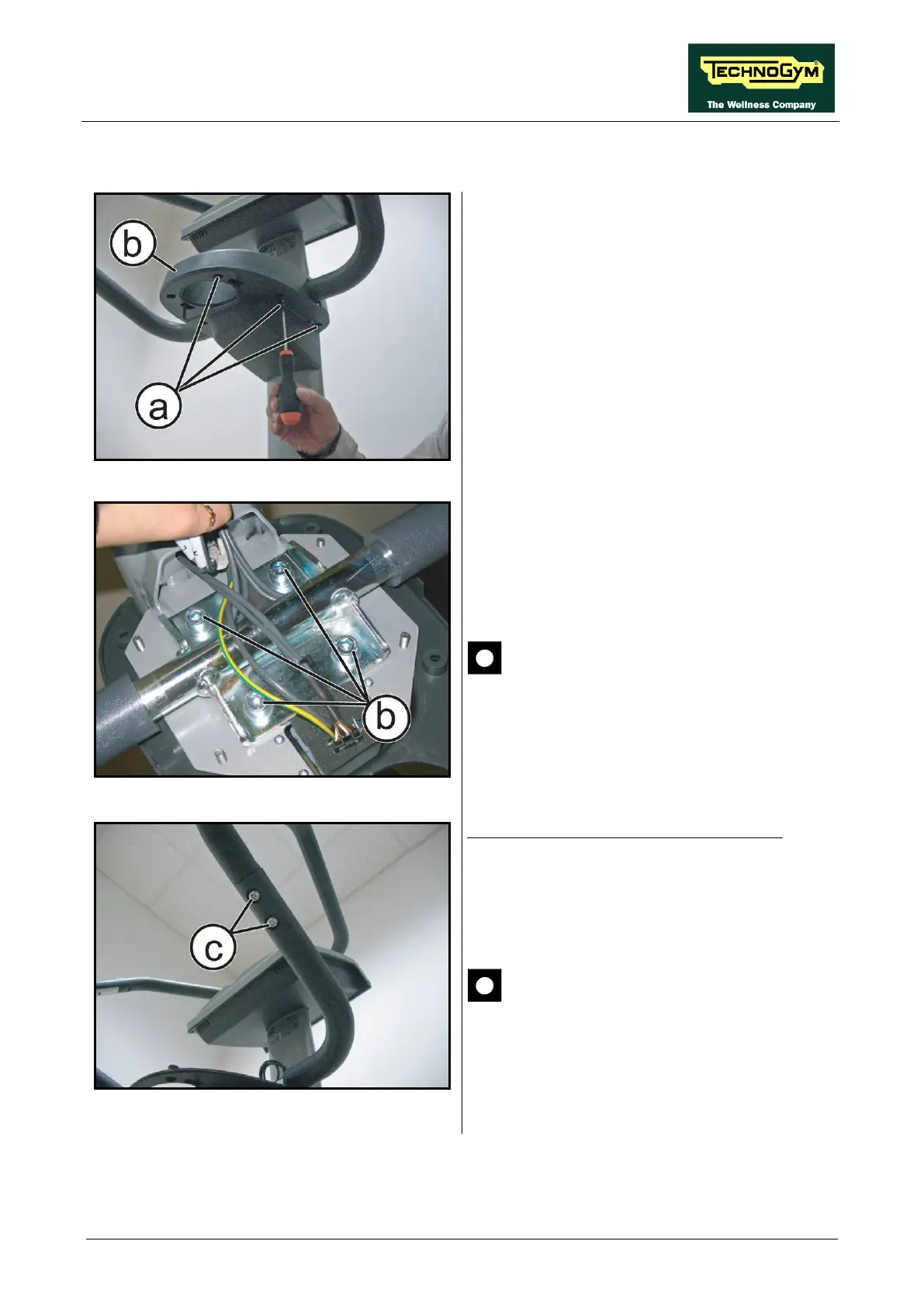

7.5. DIASASSEMBLING THE HANDLEBAR
Figure 7.5-1
1. Back off the 6 screws (a)
Phillips screwdriver.
2. Lift up the upper casing (b).
Figure 7.5-2
3. Back off the 4 screws (b)
hexagonal wrench.
CAUTION: During reassembly, lock
down the screws (b) using a torque
wrench setting of 27Nm.
Figure 7.5-3
To disassemble all parts of the handlebar:
4. Back off the 2 screws (c)
with a 6mm
hexagonal wrench, on both side of the
machine.
CAUTION: During reassembly, lock
down the screws (c) using a torque
wrench setting of 62Nm.
To reassemble the handlebar, carry out the
above steps in reverse order.
