7.12. DISASSEMBLING THE FOOTBOARDS (NEW VWRSION)
Valid for the following Serial Numbers (S.N.):
 D4963L: From D4963L08000033 up to all S.N.
 D4983D: From D4983D08000372 up to all S.N.
 D4983I: From D4983I08000572 up to all S.N.
 D4983L: From D4983L08000638 up to all S.N.
 D4984L: From D4984L08000682 up to all S.N.
 DA: all S.N.

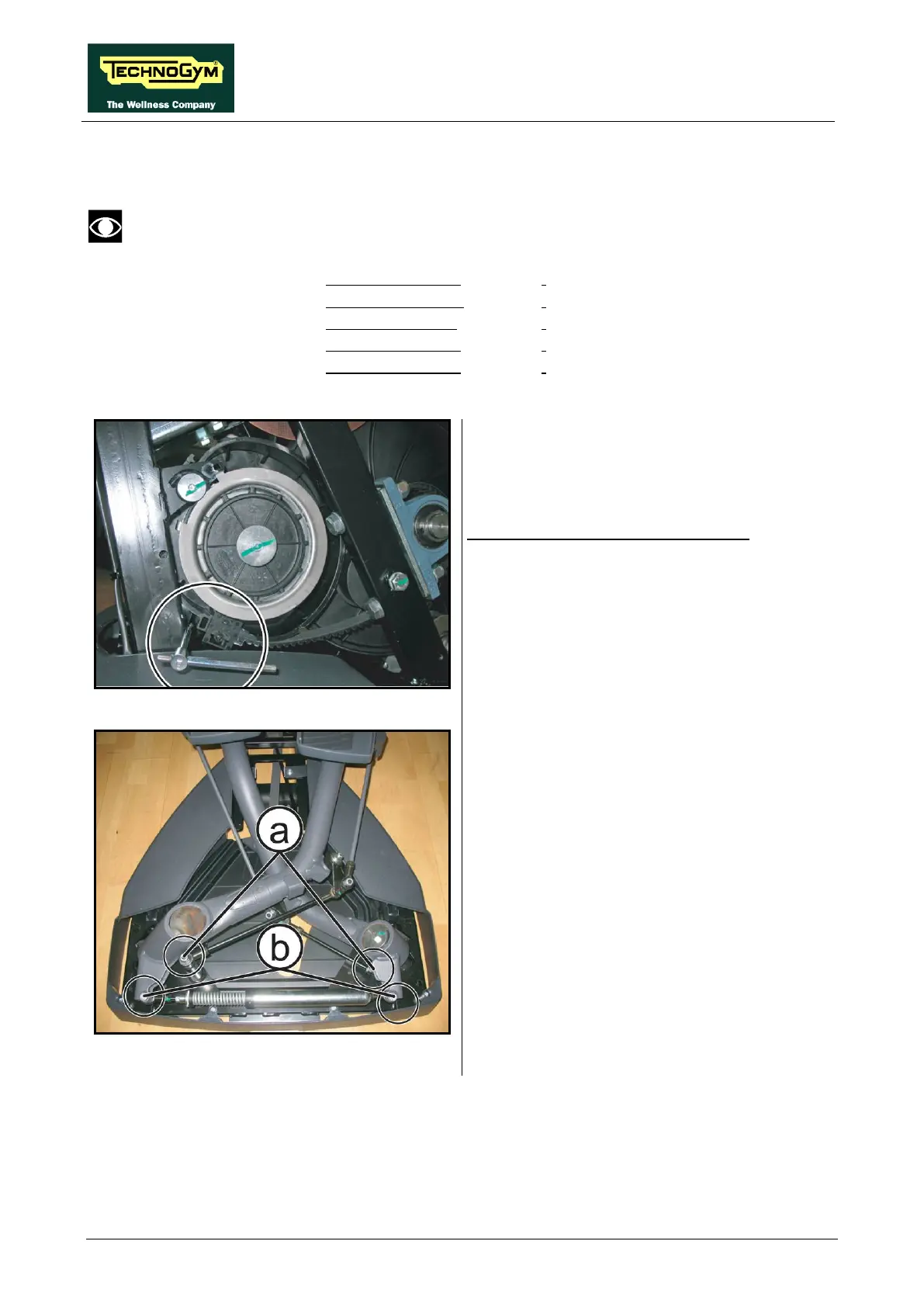

Figure 7.12-1
Carry out
the operations described in
paragraphs: 7.7. “Disassembling the guards”.
On the lever that you want to remove:
1.
Lower the footboard so that the cam which is
wrapped the strap, at the position indicated in
figure
2.
Lock the cam inserting a wrench behind the
clamping strap, centring a hole in the frame
behind the cam.
Figure 7.12-2
3. Back off the nut (a) (it depends from which
of the lever has to be disassembled)
with a
17mm wrench, to disconnect the tie rod of
the lever from the frame.
4. Back off the 2 screws (b)
(it depends from
which of the lever has to be disassembled),
for disconnect the lever from the rear shock
absorber,
with a 6mm hexagonal wrench and
a 17mm wrench to lock down the nut on the
opposite side
