Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.35

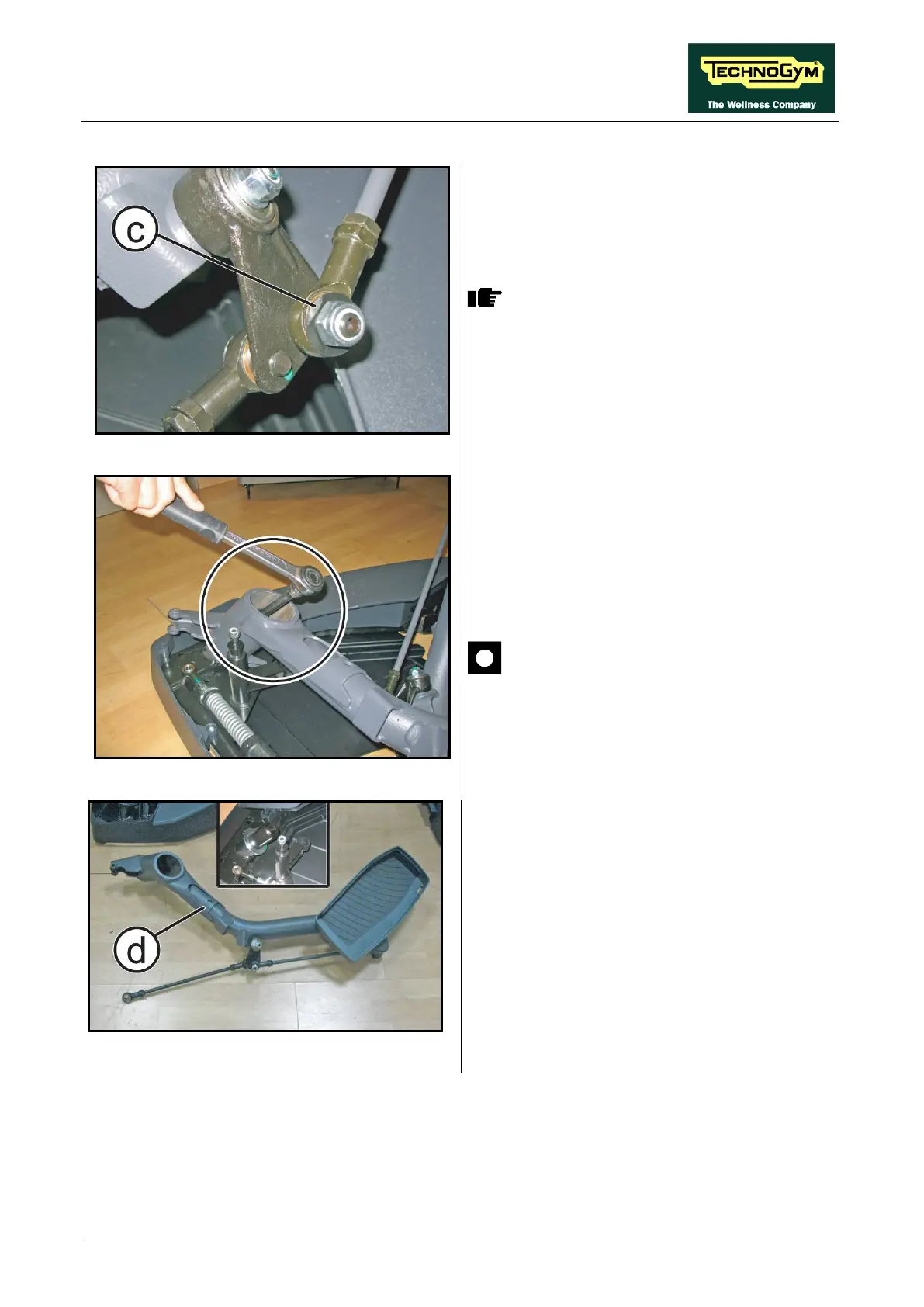

Figure 7.12-3
Be carefully to reinsert the plastic spacer
(c) on the ball joints, in the same
position.
Figure 7.12-4
5.
Back off the fixing lever screw, using a
ratchet wrench and a 17mm socket wrench
and remove the two washers, as shown in the
figure at the side.
CAUTION: During the reassembly, lock
down the screws using a torque wrench
setting of 15Nm.
Figure 7.12-5
6. Remove the lever (d)
from the pin on the
frame, highlighted in the figure.
Continued on following page ...
