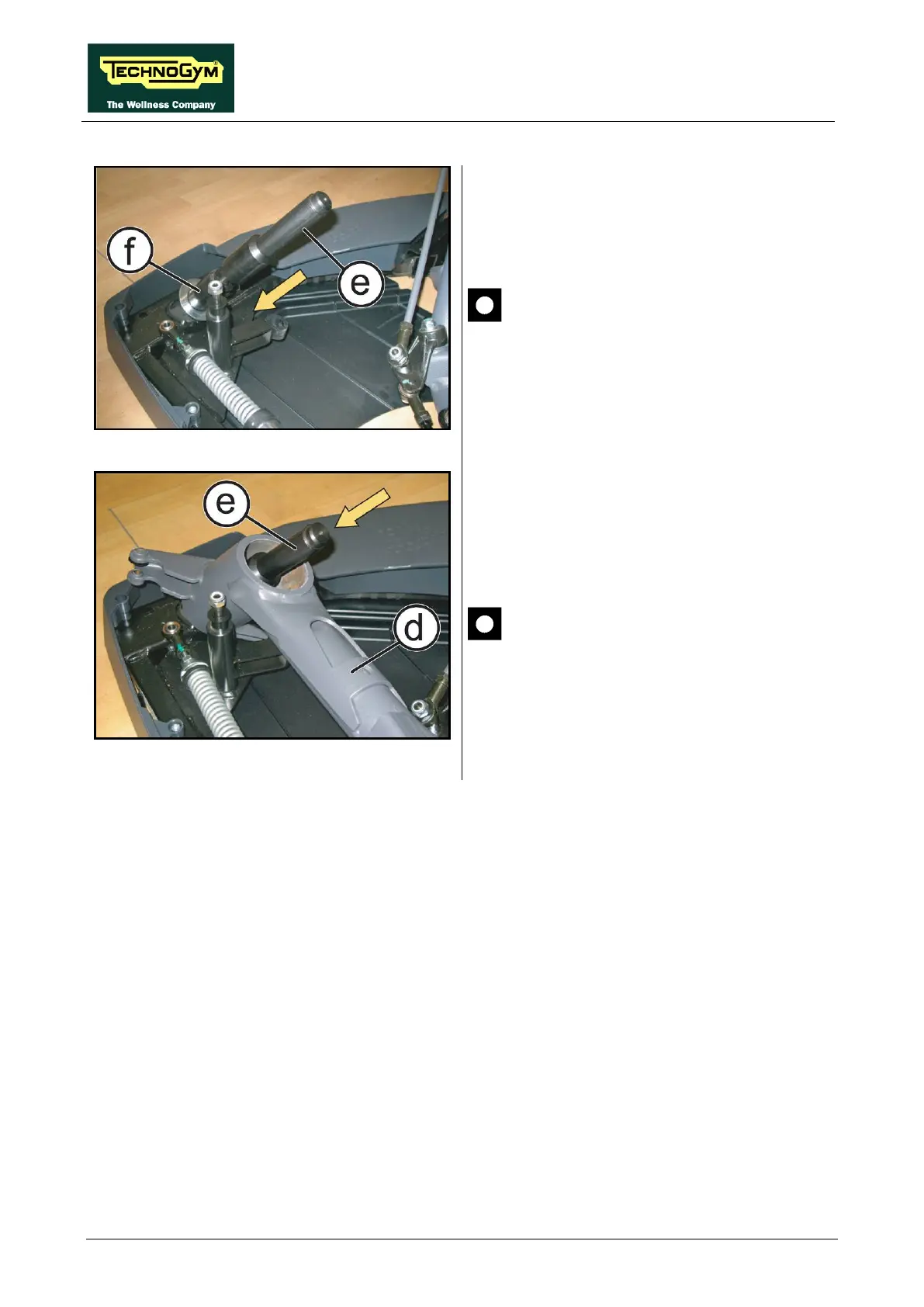

Figure 7.12-6
To reassembly the lever, carry out the above
steps in reverse order.
CAUTION:
To easily reassembly the
lever, avoiding to damage the internal
bearings use
(0T020901AA).
7. Screw completely in the special tool (e) on
the pin frame (f).
Figure 7.12-7
8. Insert the lever (d) on the pin (e)
, moving
slowly and paying particular attention to the
internal bearings of the lever.
CAUTION: During the reassembly,
check the length of the tie rods, as
detailed at the paragraph: 8.6. “
length”, if they had been removed.
