Technogym WAVE EXCITE+ - Disassembling the Sensor

Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.26
7.6. DISASSEMBLING THE SENSOR

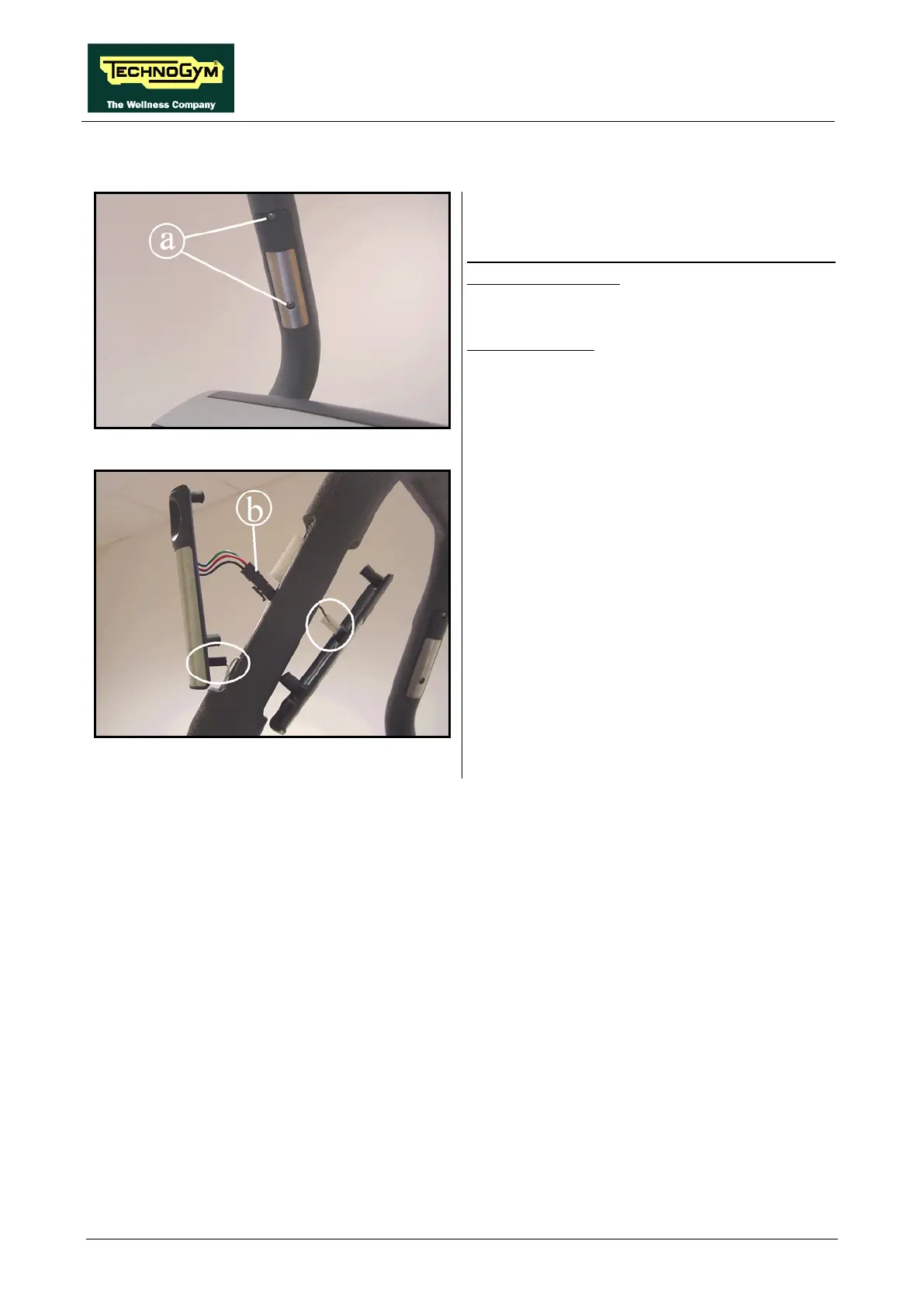

Figure 7.6-1
Turn off the machine and unplug the mains lead
from the wall outlet:
For each sensor:
a. Back off the 2 screws (a)
using a
medium Phillips screwdriver.
Figure 7.6-2
b. Lift up the top sensor.
c. Remove the lower sensor.
d.
To remove the sensors, unplug the
two faston and the connector (b)
of the touch sensor indicated in
the figure.
To reassemble the sensors, carry out the above
steps in reverse order.
