Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 8.5
8.5. FOOTBOARD DISTANCE

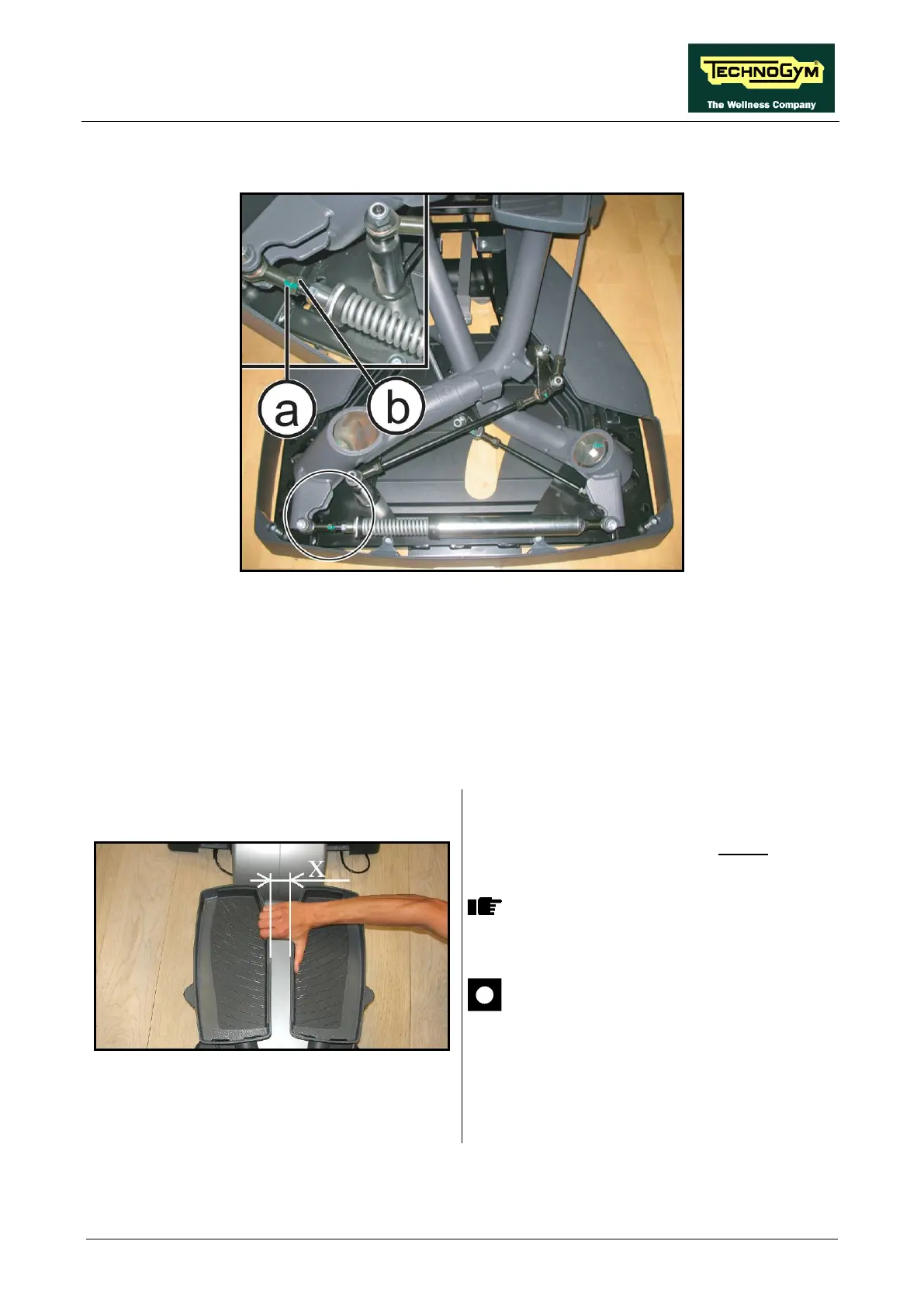

Figure 8.5-1
Carry out the operations described in paragraph: 7.7. “Disassembling the guards”, only the
posterior guard.
1. Back off the counter nut (a) using a 17mm wrench.
Acting on the Shock absorber (b)
with a 13mm wrench, for adjusting the distance between the
footboards, in stand-by position, look again.
Figure 8.5-2
2. Rotate the shock absorber in clock wise or
counter clock wise, until the distance (x)
between the two pedals is 50mm
them in its upper position..
Put some drops of Loctite on the counter
nut (a), to fix it.
CAUTION: check that the shock
absorber, even in its two extreme
positions, i.e. with one lever at its end of
travel and the other at rest, retains a
slight amount of play rotating it on its
axis.
