Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 8.2
8.2. SPEED SENSOR POSITION

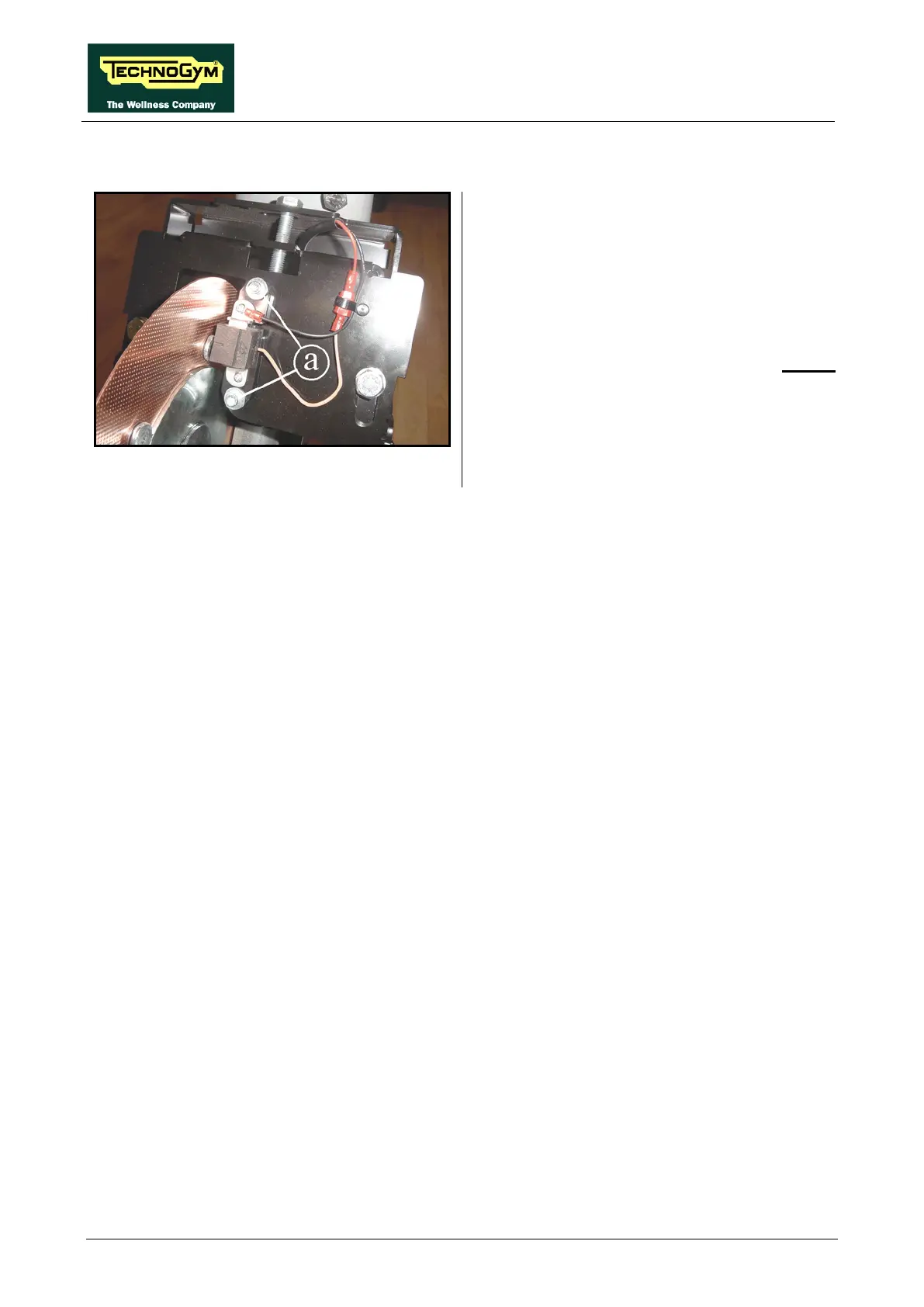

Figure 8.2-1
Carry out the operations described in paragraph
7.7. “Disassembling the guards”.
1. Back off the 2 screws (a)
sensor support to the side, so that it is 0.7mm
from the screws on the copper disk.
2. Lock the screws back down.
