Technogym WAVE EXCITE+ - Disassembling the Secondary Shaft Group

Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.40
7.15. DISASSEMBLING THE SECONDARY SHAFT GROUP

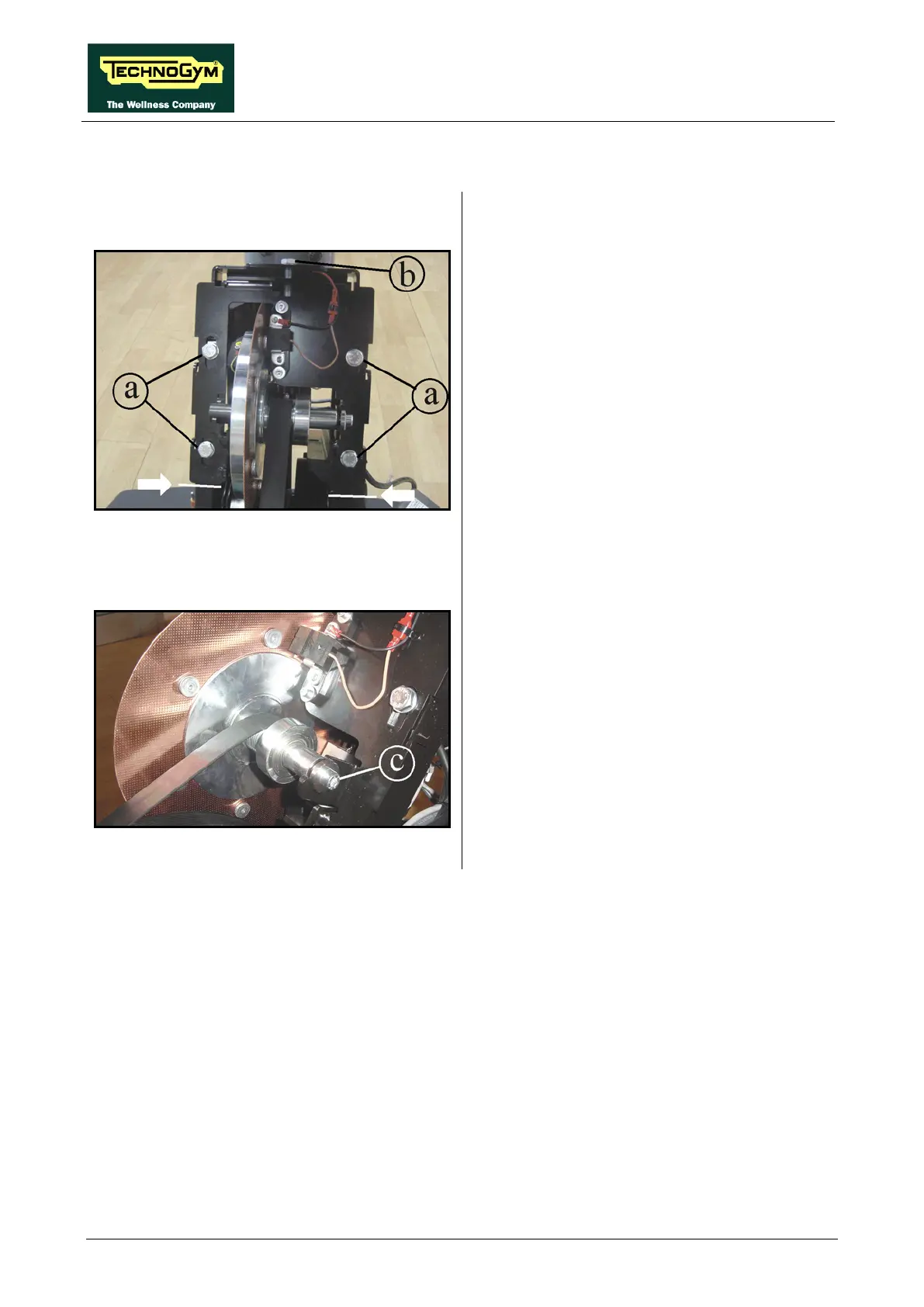

Figure 7.15-1
Carry out the operations described in
paragraphs: 7.7. “Disassembling the guards”,
only the anterior guard.
1. Remove the electronic box from the frame of
the machine.
2.
On the machine frame, mark the position
where the secondary shaft is
assembled, as
indicated by the arrows in the example.
3. Back off the 4 screws (a)
using a 17mm
wrench.
4. Back off the screw (b)
using a 17mm
wrench, sliding down the frame on which the
secondary shaft assembly is mounted, to
slacken the belt tension.
Figure 7.15-2
5. Back off the screw c
using a 6mm hexagonal
wrench, locking down the pin on the opposite
side with an 8mm hexagonal wrench.
