7.2.1.2. C-Safe board (B)

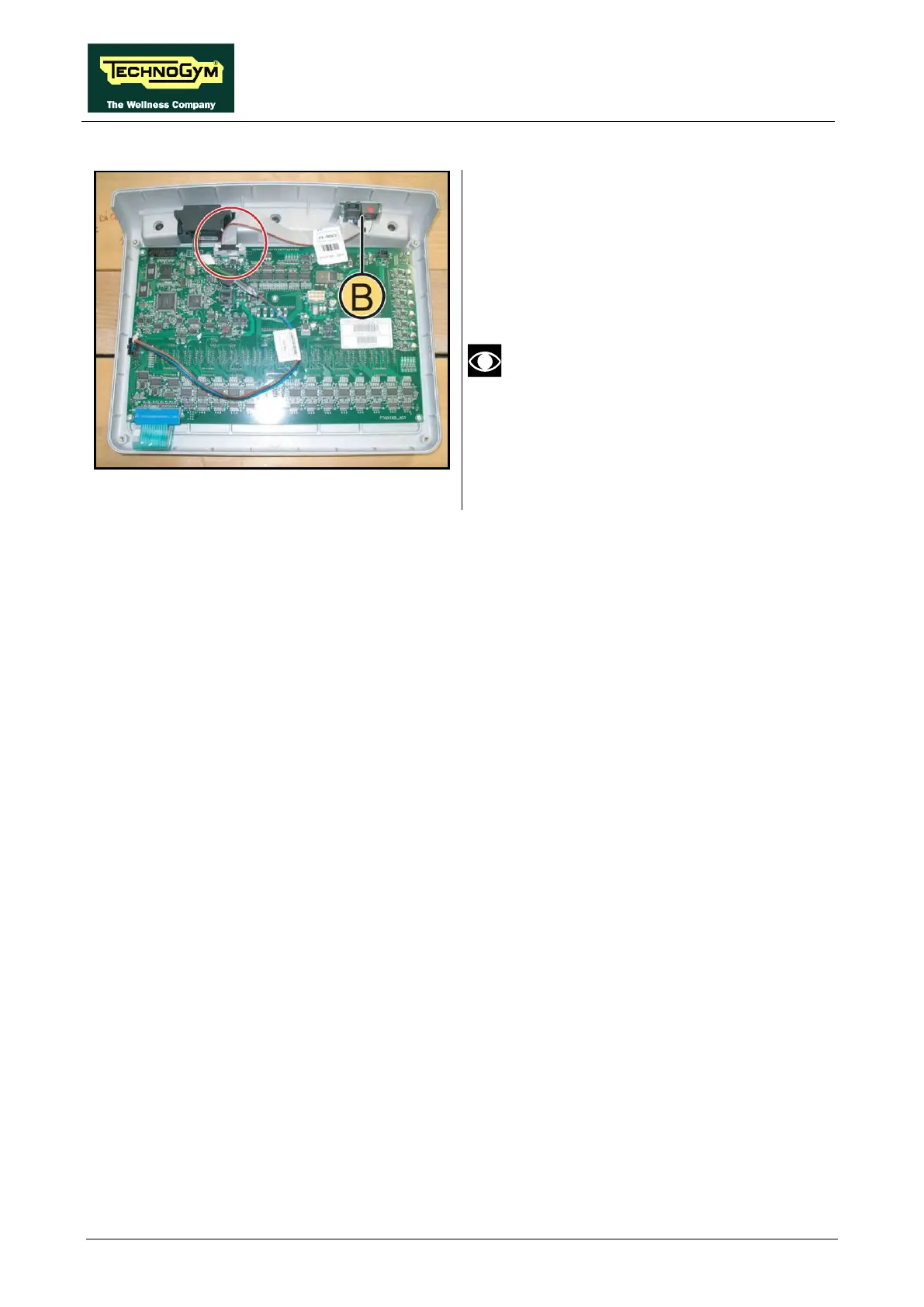

Figure 7.2-3
1.
Disconnect from the ARM board the
connector highlighted in the figure.
2.
Remove the hot glue that fix the board on the
casing and remove the C-Safe board (B),
sliding it upward.
During the reassembly, use the hot glue
to fix the C-Safe board.
To reassemble the C-Safe board,
carry out the above steps in reverse order.
