7.2.2.5. CPU board (D)

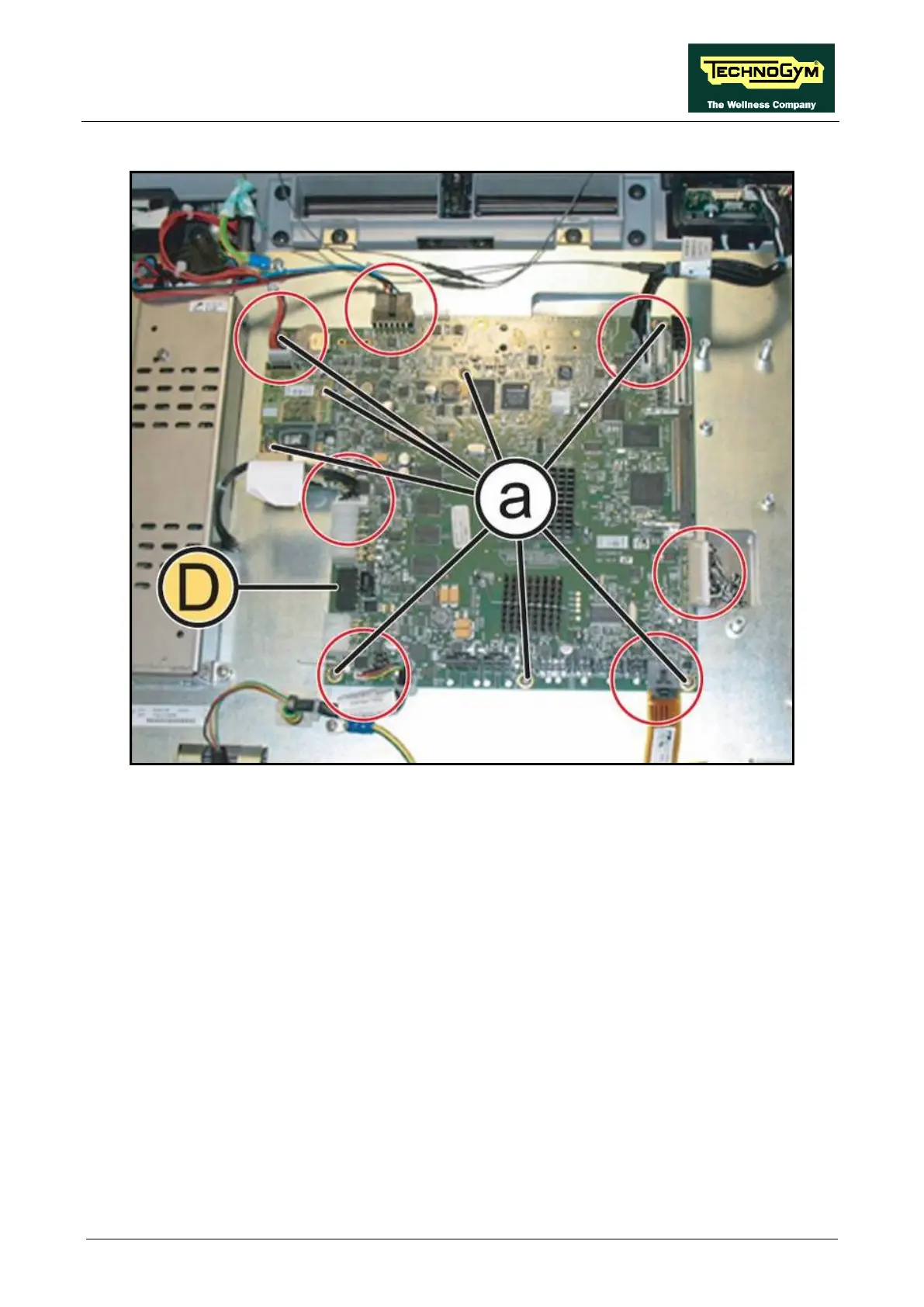

Figure 7.2-15
Carry out the procedure described in paragraph: 7.2.2.1 “Wireless board (A)” and 7.2.2.2 “Tuner
DVB-T board (B)”.
1. Unplug the connectors highlighted in the figure.
2. Back off the 8 screws (a) using a medium Phillips Screwdriver.
3. Remove the CPU board (D).
To reassemble the CPU Board,
follows the above steps in the reverse order.
