7.14. DISASSEMBLING THE BRAKE WINDING

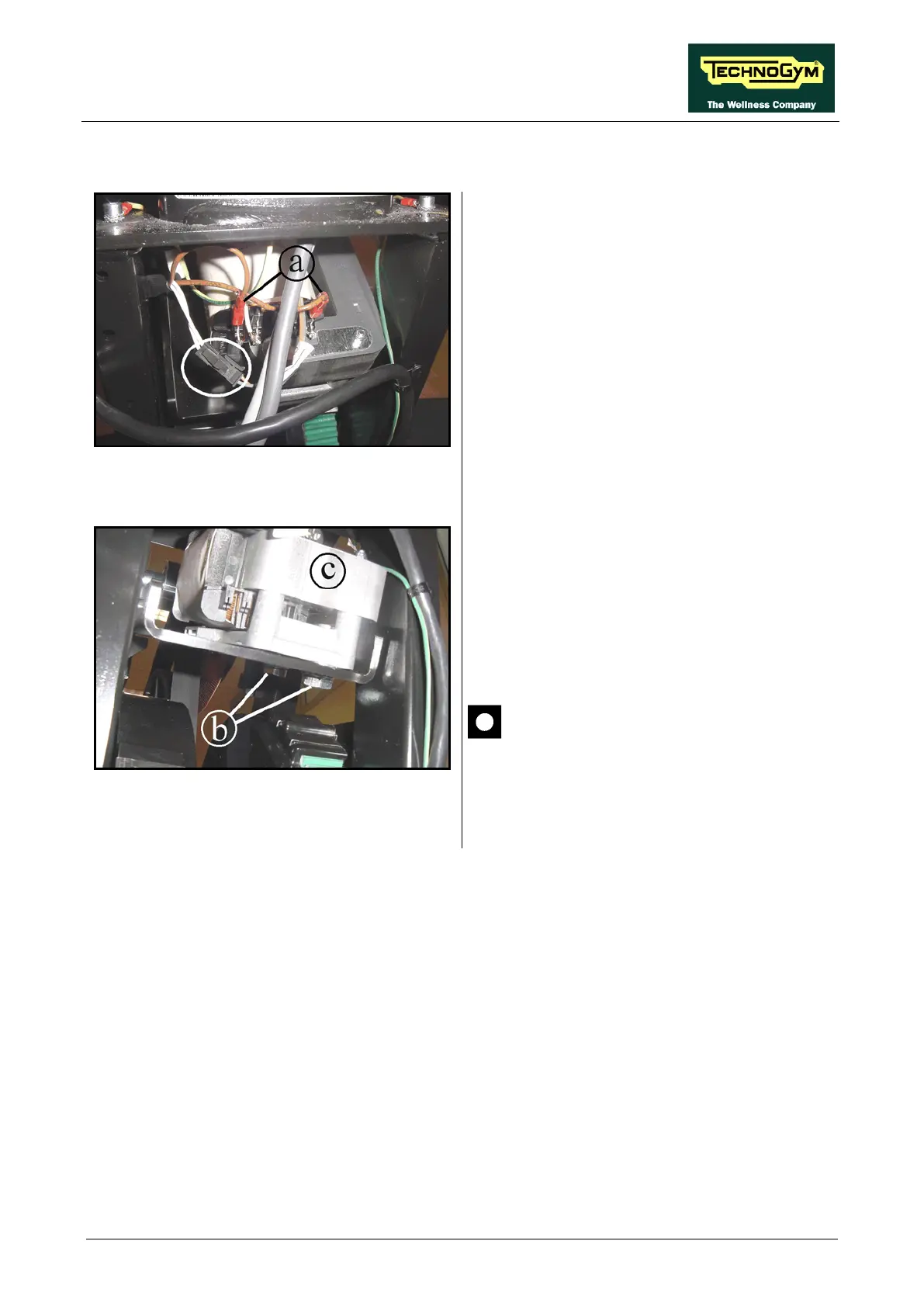

Figure 7.14-1
Carry out the operations described in
paragraphs: 7.7. “Disassembling the guards”,
only the anterior guard.
1. Unplug the 2 faston connectors (a)
from the
winding.
2.
Unplug the connector circled in the figure at
left.
Figure 7.14-2
3. Back off the 2 screws (b) using an 17mm
wrench, supporting the entire brake winding
group (c), to avoid damaging the copper disk.
4. Remove the brake winding assembly
To reassemble the brake winding, carry out the
above steps in reverse order.
CAUTION: After completing the
reassembly, adjust the position of the
winding group as described in
paragraph: 8.3. “
Brake winding
position”.
