8.6. TIE ROD LENGTH

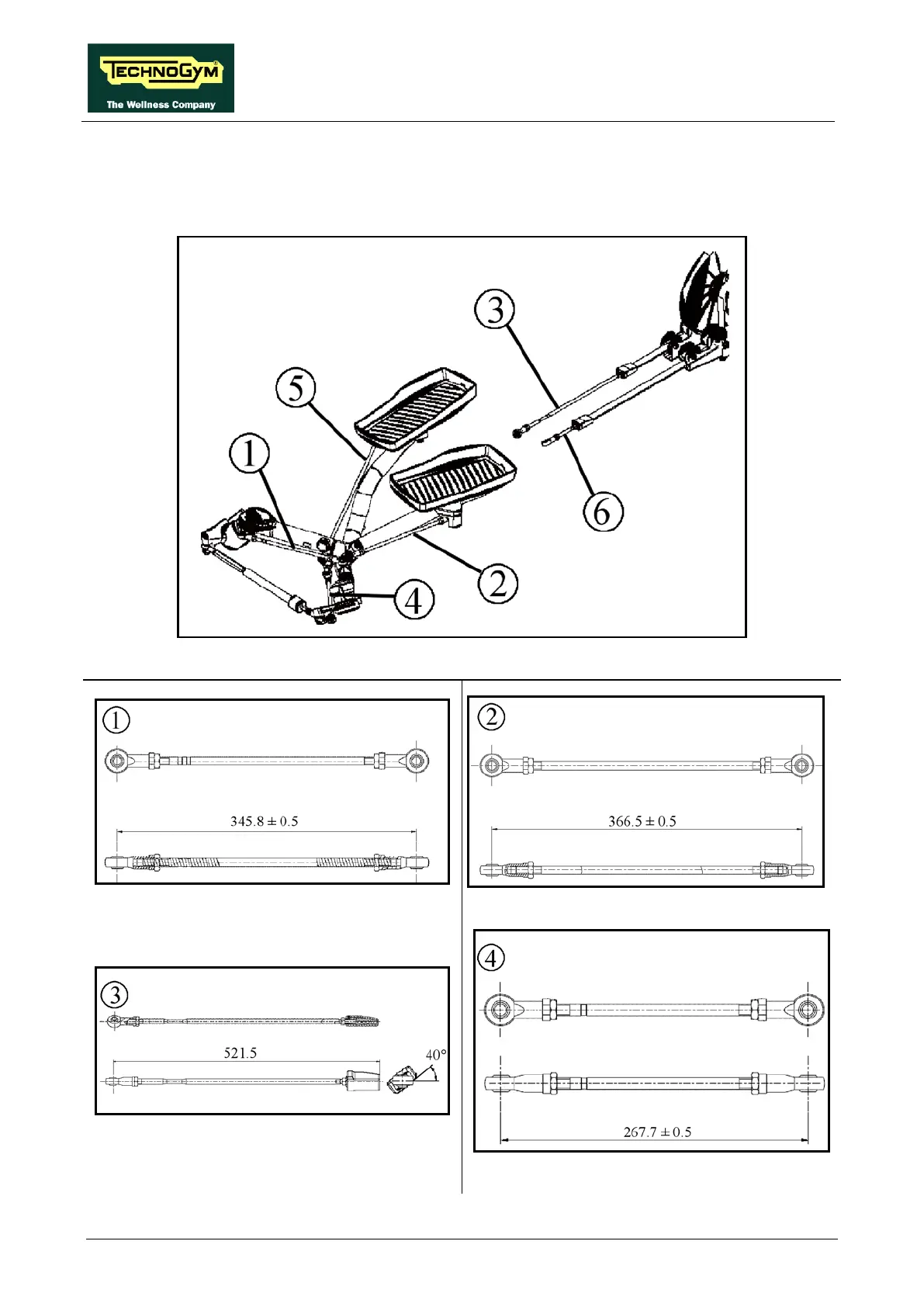

Adjust the length of the tie rods according to the data, for each of them, in the following figures.
Figure 8.6-1
Figure 8.6-2
Figure 8.6-3
Figure 8.6-4
Figure 8.6-5
