4. ACCESSORIES
4.1. CARDIO THEATER CONNECTION
Only for LED version
The machine can be connected to the Cardio Theater by means of the RJ45 connector on the C-Safe
board. The Cardio Theater unit must be provided with a power cable having the following pin-out:

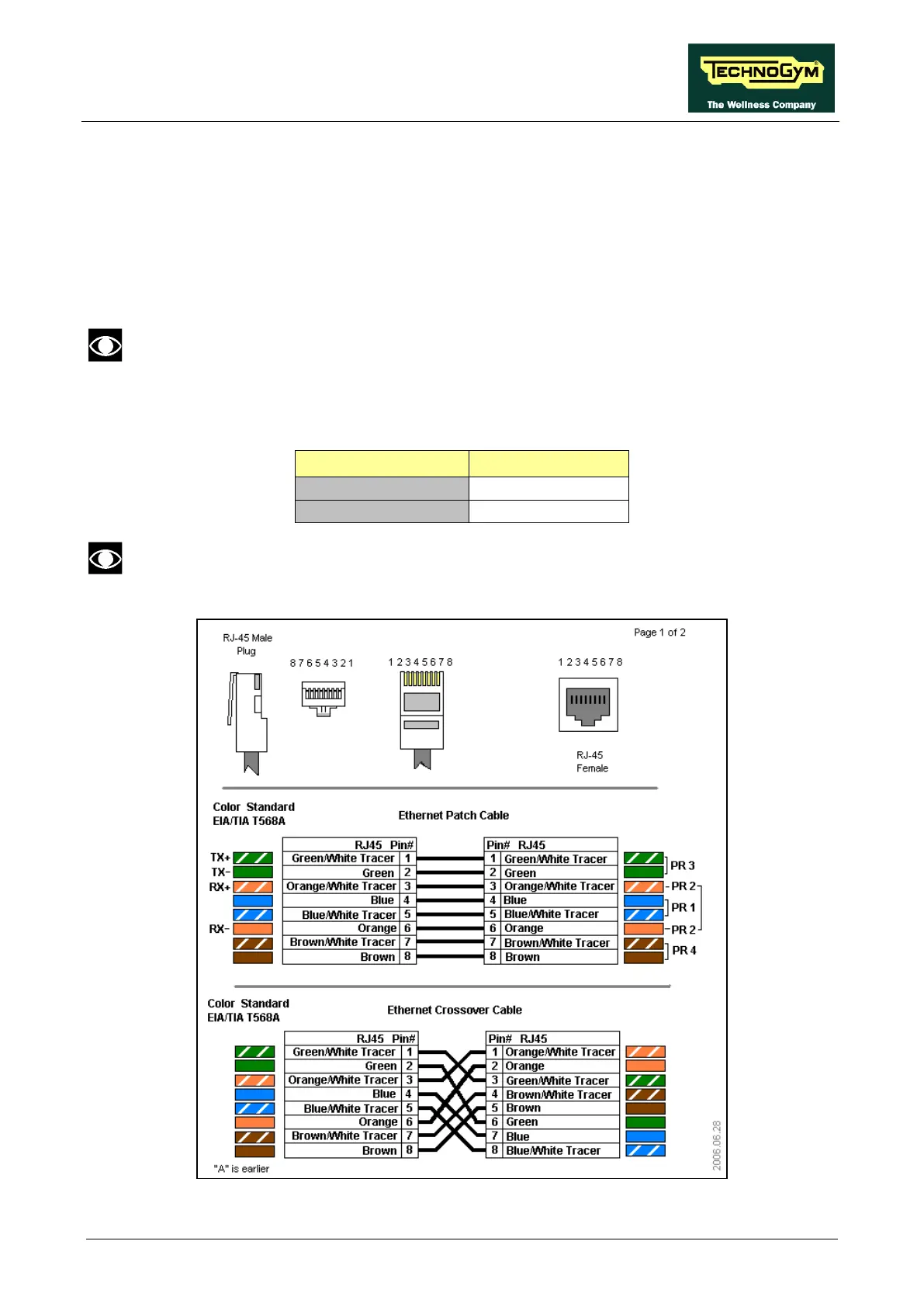

WARNING: for the numbering of the pins, on RJ45 connector, please refer to the
diagram below:
