7.2.2.10. Frontal plugs TGS + USB and cover

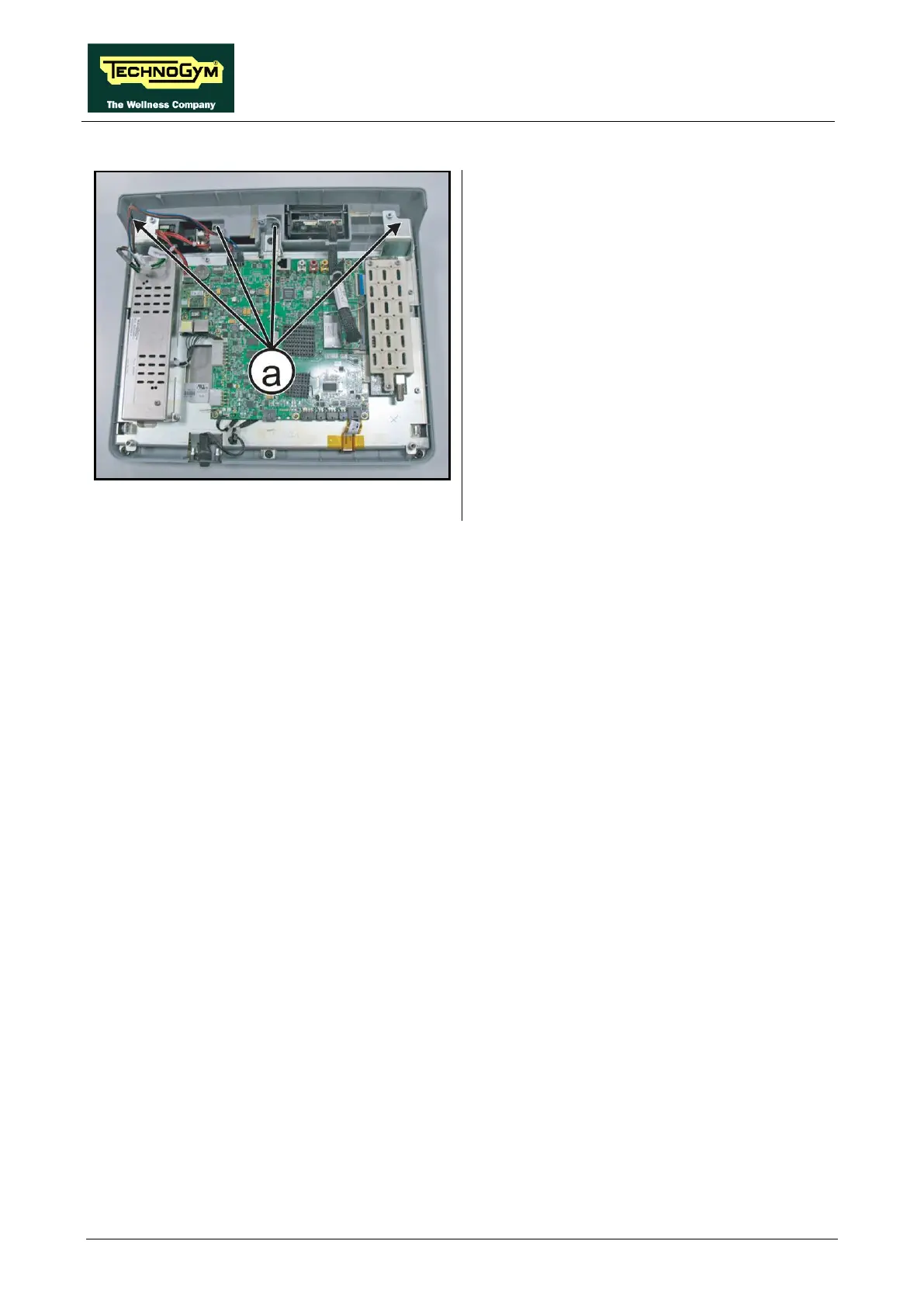

Figure 7.2-22
1. Back off the 4 screws (a)
Phillips screwdriver.
2. Remove the frontal plug from the front side.
To reassemble the Frontal plugs and USB port,
follows the above steps in the reverse order.
