Technogym WAVE EXCITE+ - Disassembling the Platforms

Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.49
7.20. DISASSEMBLING THE PLATFORMS

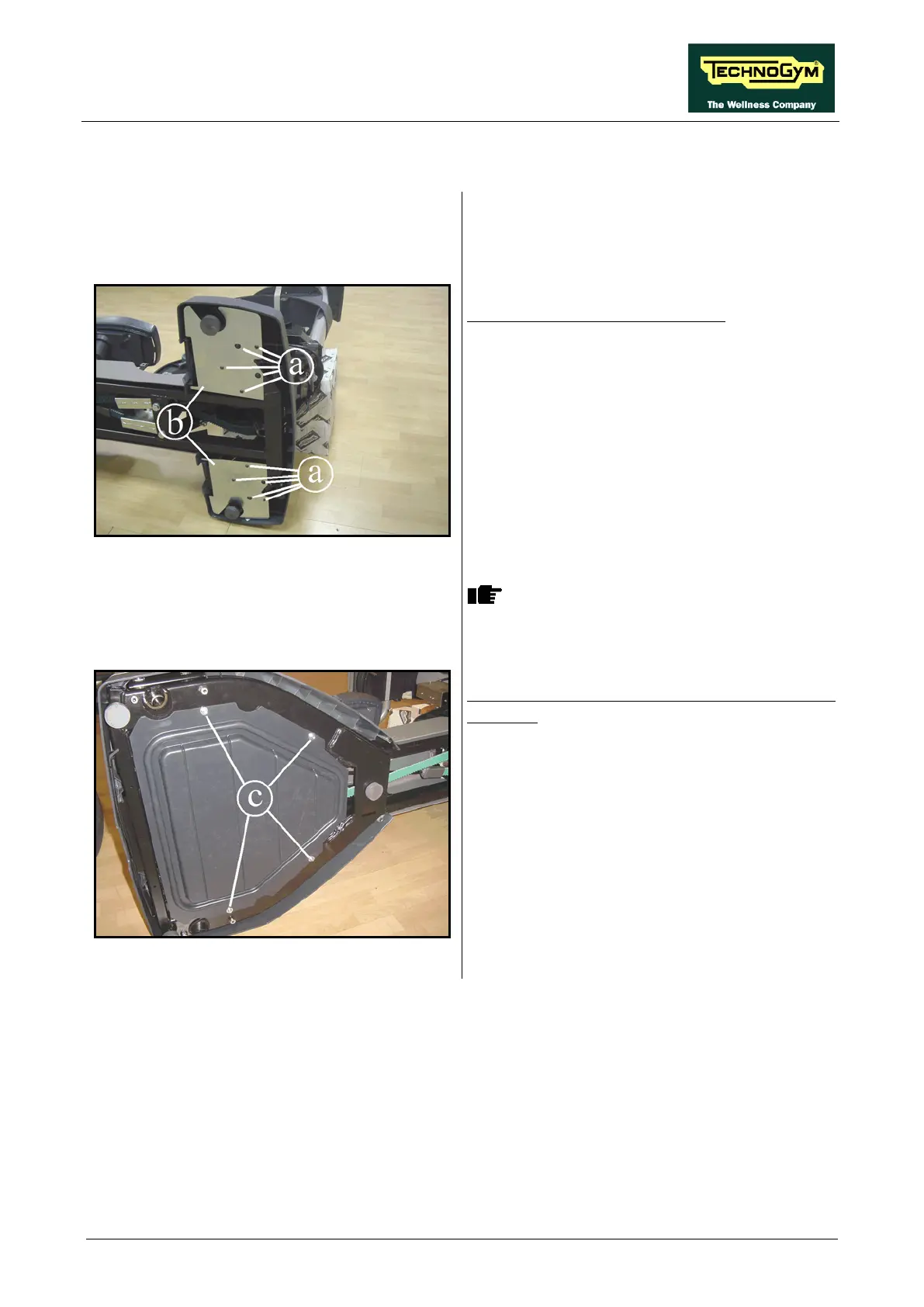

Figure 7.20-1
Carry out the operations described in paragraph
7.7. “Disassembling the guards
” for removing
the front guards.
To disassemble the front platform:
1. Turn the machine over on one side, resting
the frame on a box to keep the platform
raised off the ground.
2. Back off the 5 screws (a)
using a medium
Phillips screwdriver and remove the 2
covering plates (b).
3.
Remove the front platform, pulling it out
from the top.
Pay attention during reassembly not to
crush the cables which goes to the power
entry module.
Figure 7.20-2
To disassemble the bottom guard of the rear
platform:
1. Turn the machine over on one side:
2. Back off the 4 screws (c)
, using a 5mm
hexagonal wrench and remove the bottom
guard.
To reassemble the platforms, carry out the above
steps in reverse order.
