Technogym WAVE EXCITE+ - Disassembling Levers Tensioning Spring

Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.37
7.13. DISASSEMBLING THE LEVERS TENSIONING SPRING

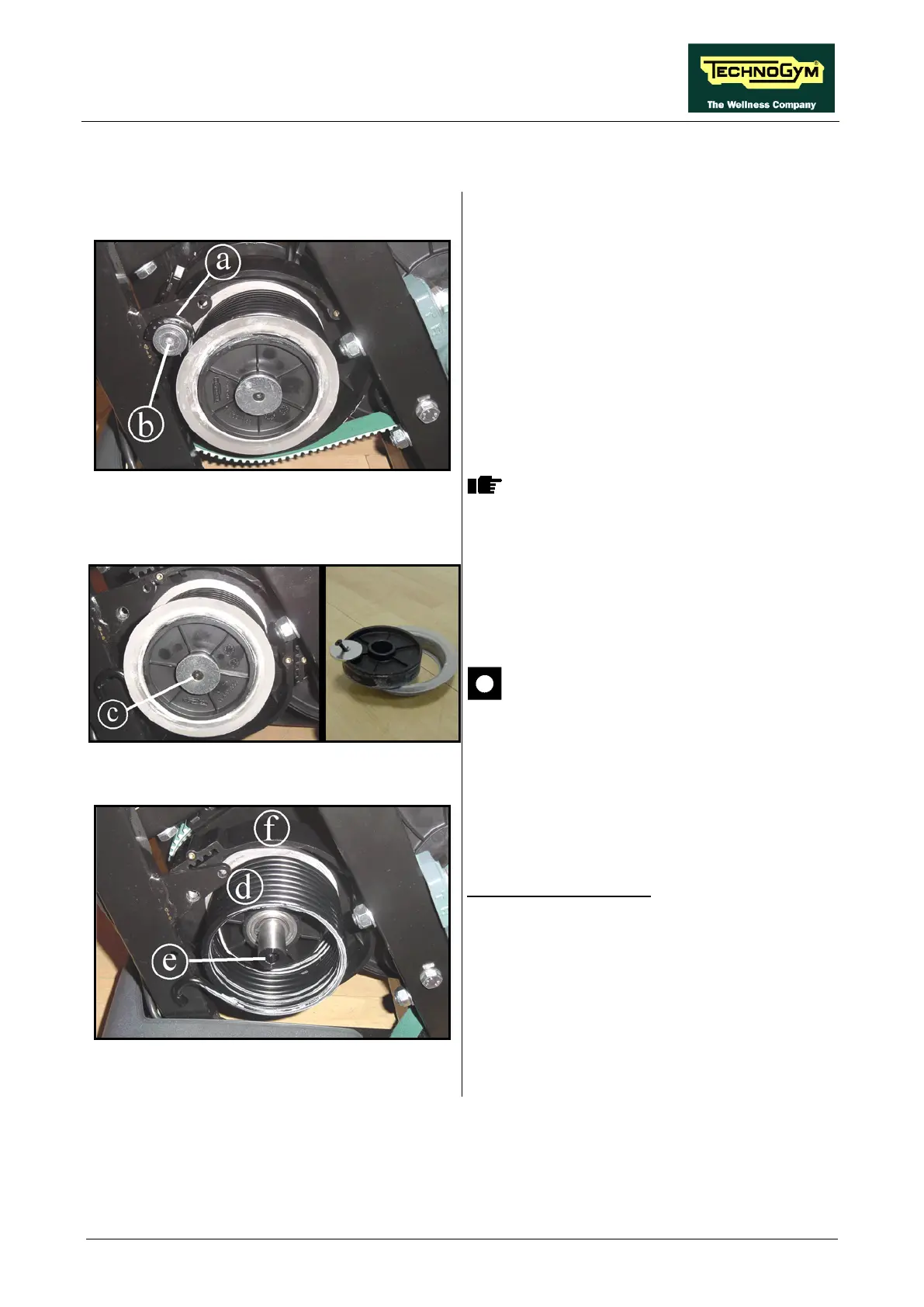

Figure 7.13-1
Carry out the operations described in
paragraphs: 7.7. “Disassembling the guards”,
only the anterior guard.
1.
Pull up the pedal opposite the spring that is
being disassembled, in order to unload the
spring as much as possible.
2. Back off the screw (b)
using a 5mm
hexagonal wrench, using a pliers to keep the
spring (a).
Be careful because the spring might
remain slightly loaded, exerting pressure
on the screw ”b”.
Figure 7.13-2
3. Back off the screw (c) using a 3mm
hexagonal wrench to r
emove the screw, the
washer and the other two components used to
fix the spring.
CAUTION: During reassembly,
remember to put all the components in
the proper order as shown in the figure
to side.
Figure 7.13-3
4. Remove the spring (d) pulling it out on the
side.
To disassemble the cam:
1. Disconnect the belt from the cam, as detailed
in the procedure 7.11. “Disassembling the
footboard lever Belt”.
2. Back off the pin (e)
using a 12mm hexagonal
wrench.
3. remove the cam (f).
Continued on following page ...
