Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.38

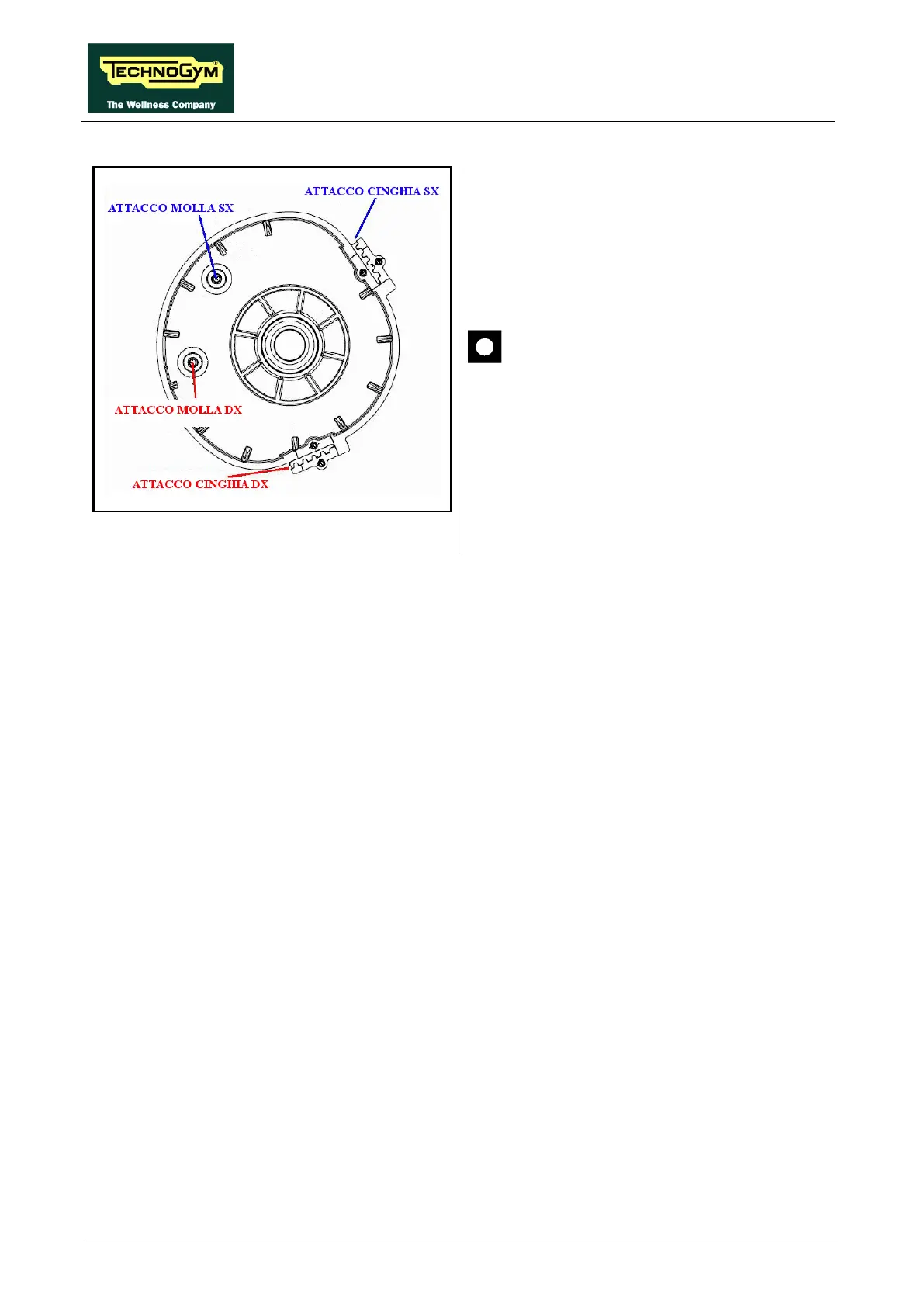

Figure 7.13-1
To reassemble the spring and the cam, carry out
the above steps in reverse order.
CAUTION: The cams used on the two
sides of the machine, are both the same
part so check the proper point of
connection for spring and belt.
