Technogym WAVE EXCITE+ - Disassembling the Cardio Receiver; HR;HS Receiver (Chest Belt; Hand Sensor) Disassembly

Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.22
7.4. DISASSEMBLING THE CARDIO RECEIVER
7.4.1. HR/HS RECEIVER (CHEST BELT / HAND SENSOR)

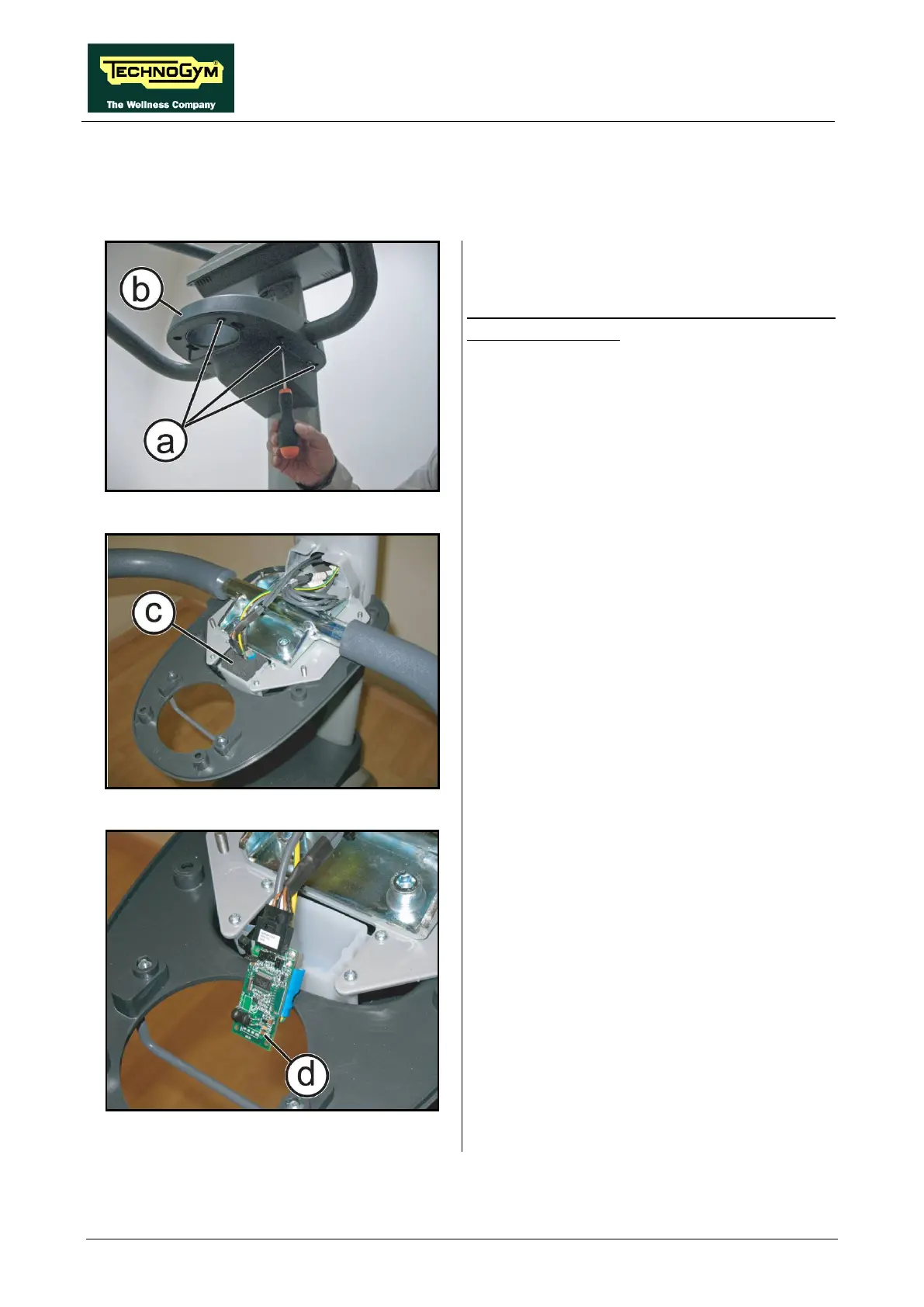

Figure 7.4-1
Turn off the machine and unplug the mains lead
from the wall outlet:
1. Back off the 6 screws (a)
using a medium
Phillips screwdriver.
2. Lift up the upper casing (b).
Figure 7.4-2
3. Unthread the Cardio R
eceiver from its
housing, with the protection sponge (c)..
Figure 7.4-3
4.
Remove the protection sponge and remove
the Cardio Receiver (d).
Continued on following page ...
