Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.23

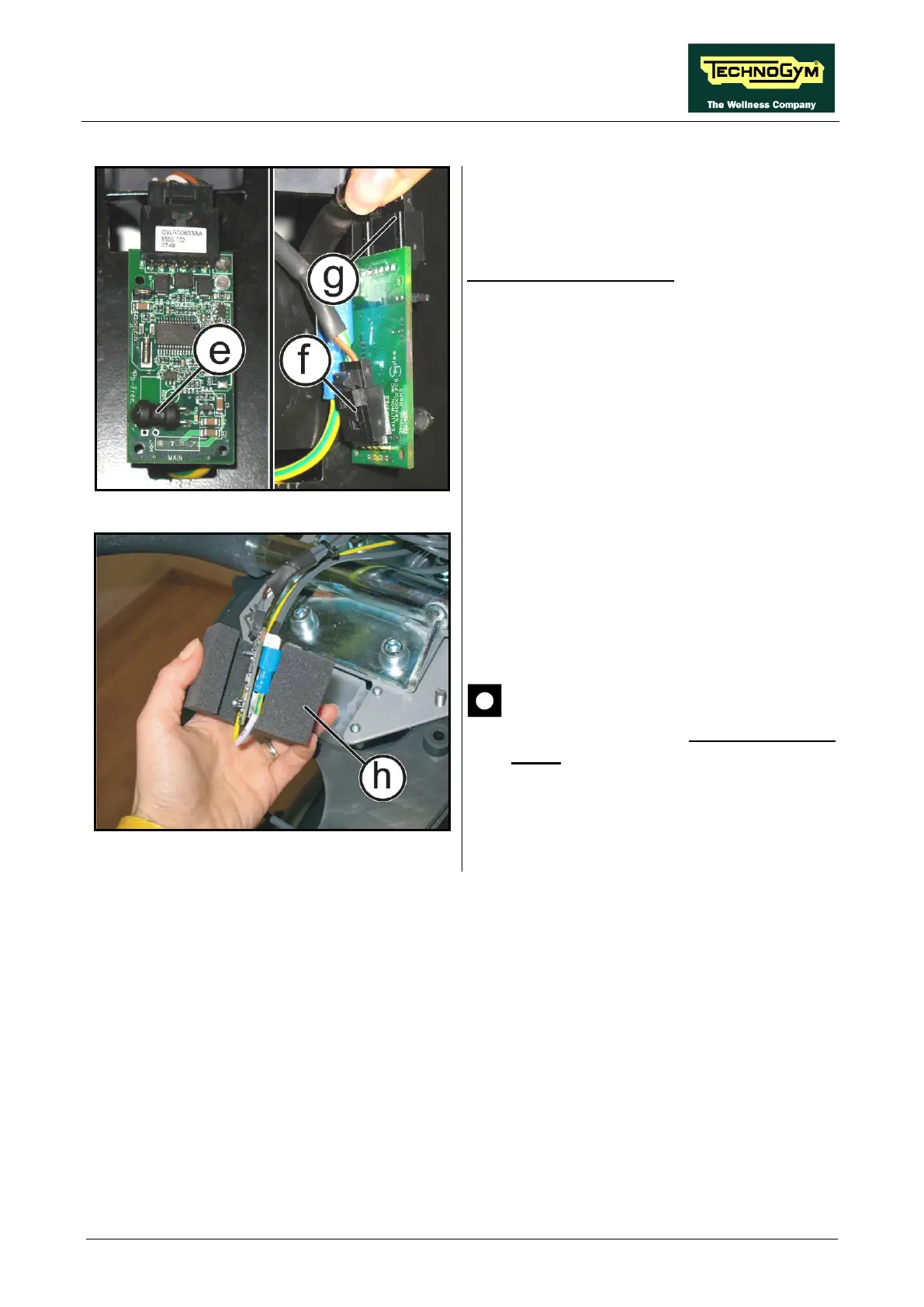

Figure 7.4-4
To reassembly the receiver:
1. On the Cardio Receiver is possible to see the
coil (e) and the connectors (f) and (g).
2. Connect the cables to the receiver, as in the
figure to side.
Figure 7.4-5
3. Wrap the receiver again in the sponge (h),
using a cable tie to fix it.
4. Reinsert the Cardio R
eceiver inside of the
home.
CAUTION: Position the receiver so that
the coil is oriented
TOWARDS THE
USER.
To reassemble the cardio receiver, carry out the
above steps in reverse order.
