Technogym WAVE EXCITE+ - Disassembling the Speed Sensor

Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.47
7.18. DISASSEMBLING THE SPEED SENSOR
Only for POWERED models.

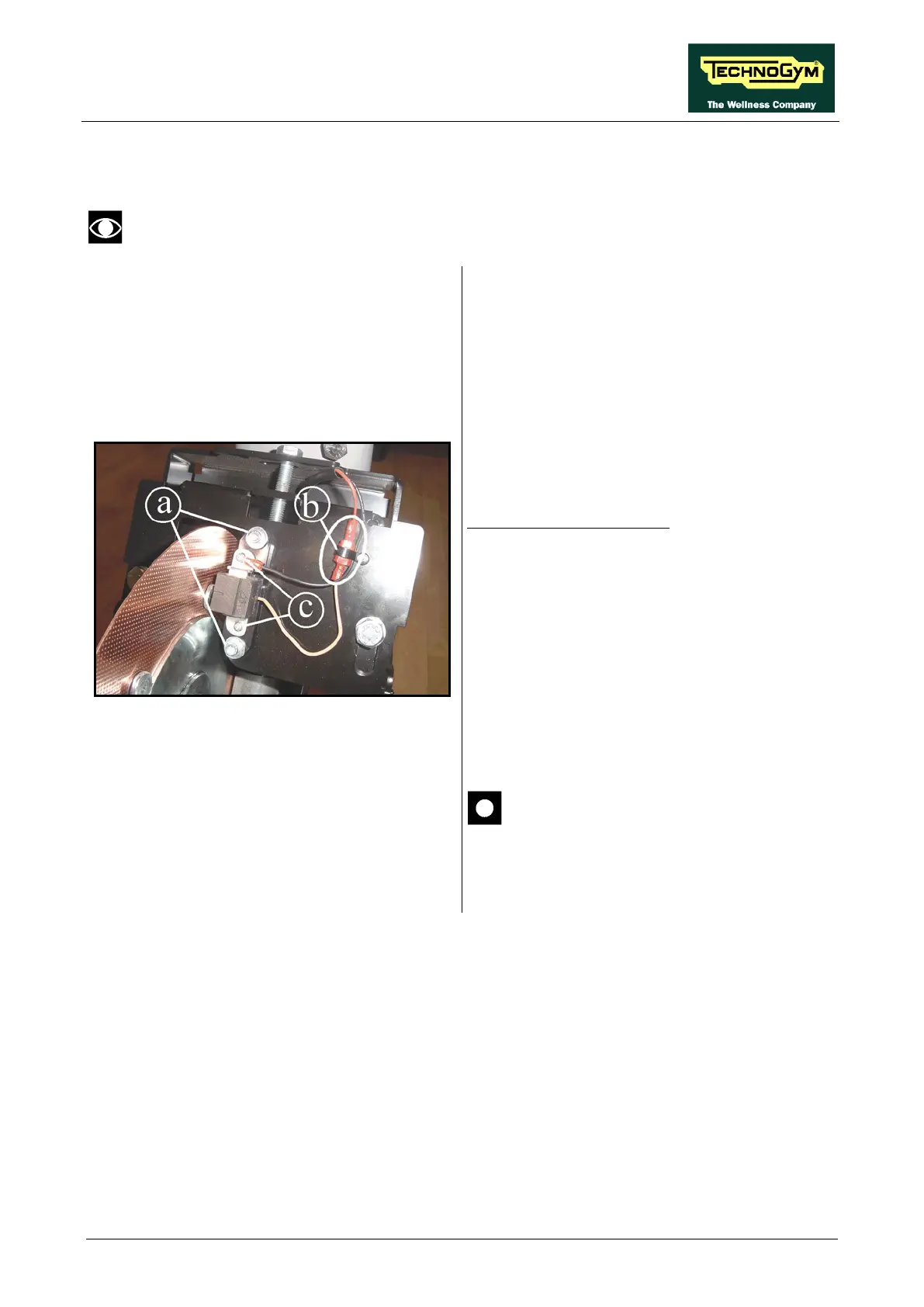

Figure 7.18-1
Carry out the operations described in
paragraphs: 7.7. “Disassembling the guards”,
only the anterior guard.
1. Back off the 2 screws (a)
using a 4mm
hexagonal wrench.
2. Remove the speed sensor and its support.
To remove only the sensor:
3. Cut the cable tie (b).
4. Unplug the faston indicated in the figure.
5. Back off the 2 screws (c)
using a small
Phillips screwdriver and remove sensor.
To reassemble the speed sensor, carry out the
above steps in reverse order.
CAUTION: After completing the
reassembly, adjust the position
of the
sensor as described in paragraph: 8.2.
“Speed sensor position”.
