8.3. BRAKE WINDING POSITION

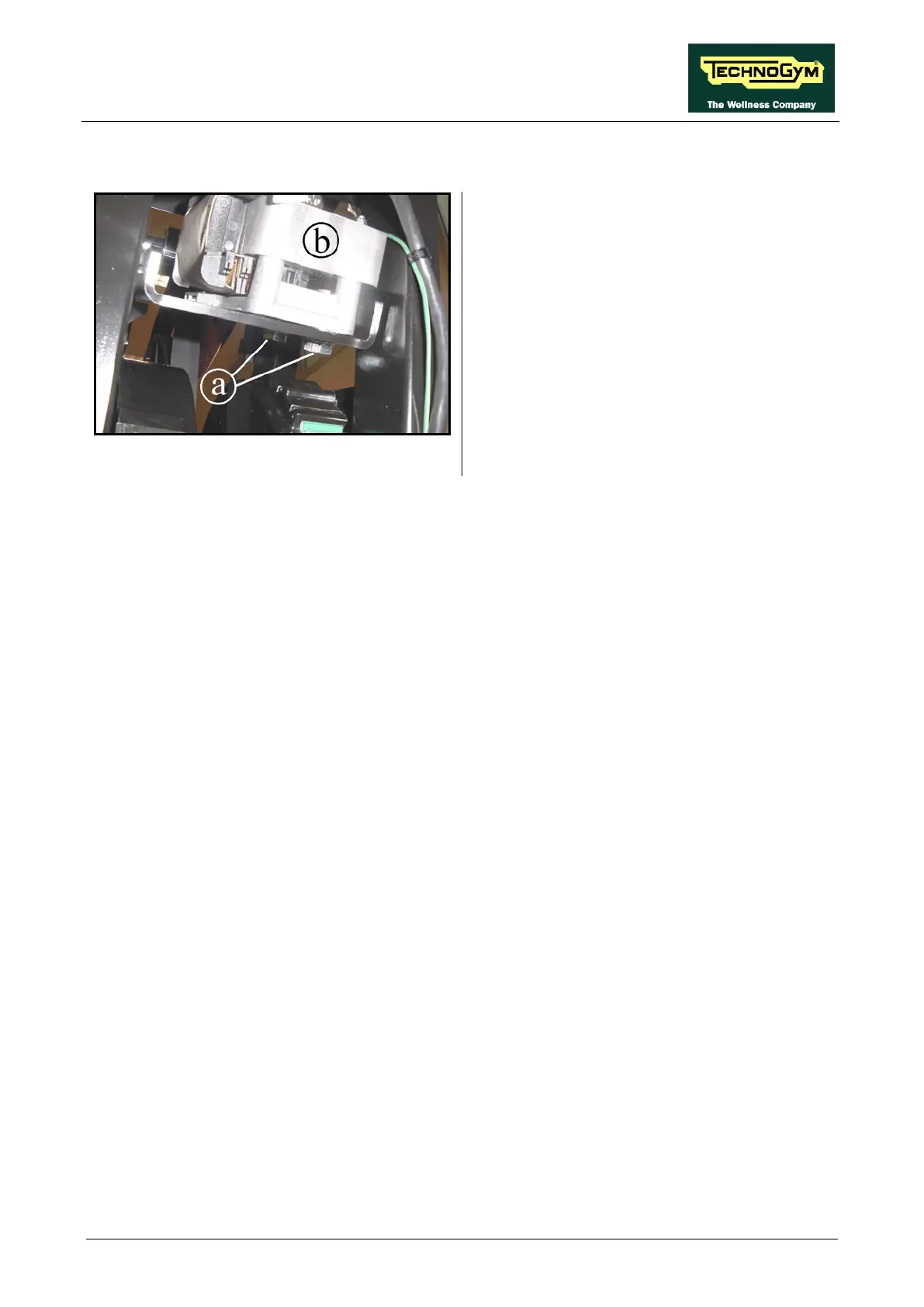

Figure 8.3-1
Carry out the operations described in paragraph
7.7. “Disassembling the guards”.
1. Back off the 2 screws (a) and positi
brake winding support (b)
so that it is centred
on the copper disk, using a 1mm thickness
gauge.
2. Lock the screws back down.
