Technogym WAVE EXCITE+ - Page 133

Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.33

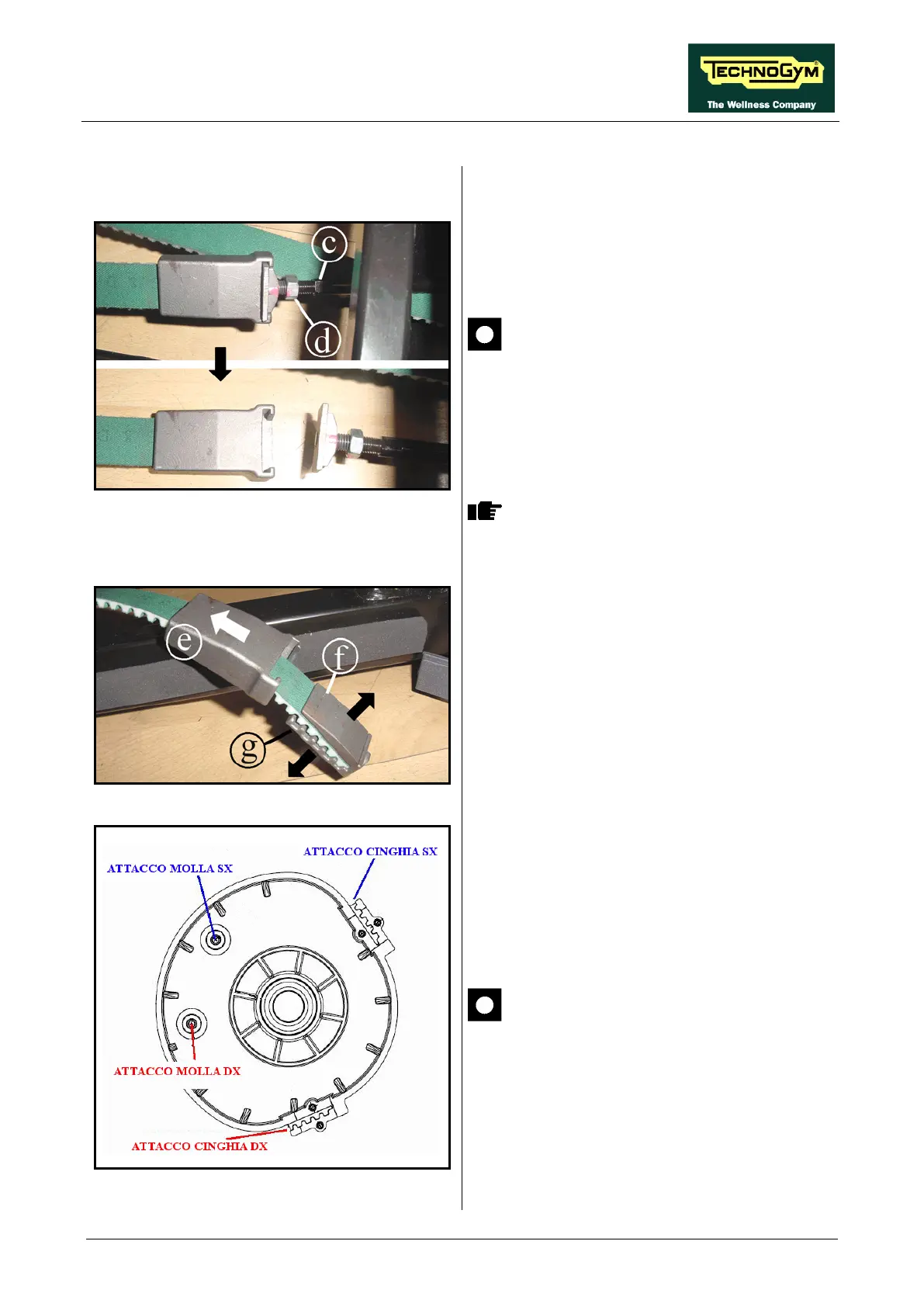

Figure 7.11-3
5. Unscrew the tie-rod (c) from the fastener on
the belt using an 8mm wrench, without
moving the nut (d).
6. Separate the tie-
rod from the fastener on the
belt, pulling it out as illustrated in the figure
CAUTION: During reassembly, lock
down the tie-rod (c)
using a torque
wrench setting of 3.7Nm, until the nut is
fully up against the clamping system.
Lock down the nut using a torque
wrench setting of 18Nm.
If the nut has been moved from its
original position, check
in paragraph:
8.6. “Tie rod length”.
Figure 7.11-4
7. Disassemble the tie-
rod fastener from the
belt, by sliding component (e) along the belt.
8. Then remove the wedge (f)
and the threaded
connector (g) from the belt.
Figure 7.11-5
To reassemble the belt, carry out the above steps
in reverse order.
CAUTION: The cams used on
the two
sides of the machine, are both the same
part so check the proper point of
connection for spring and belt.
