Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.28

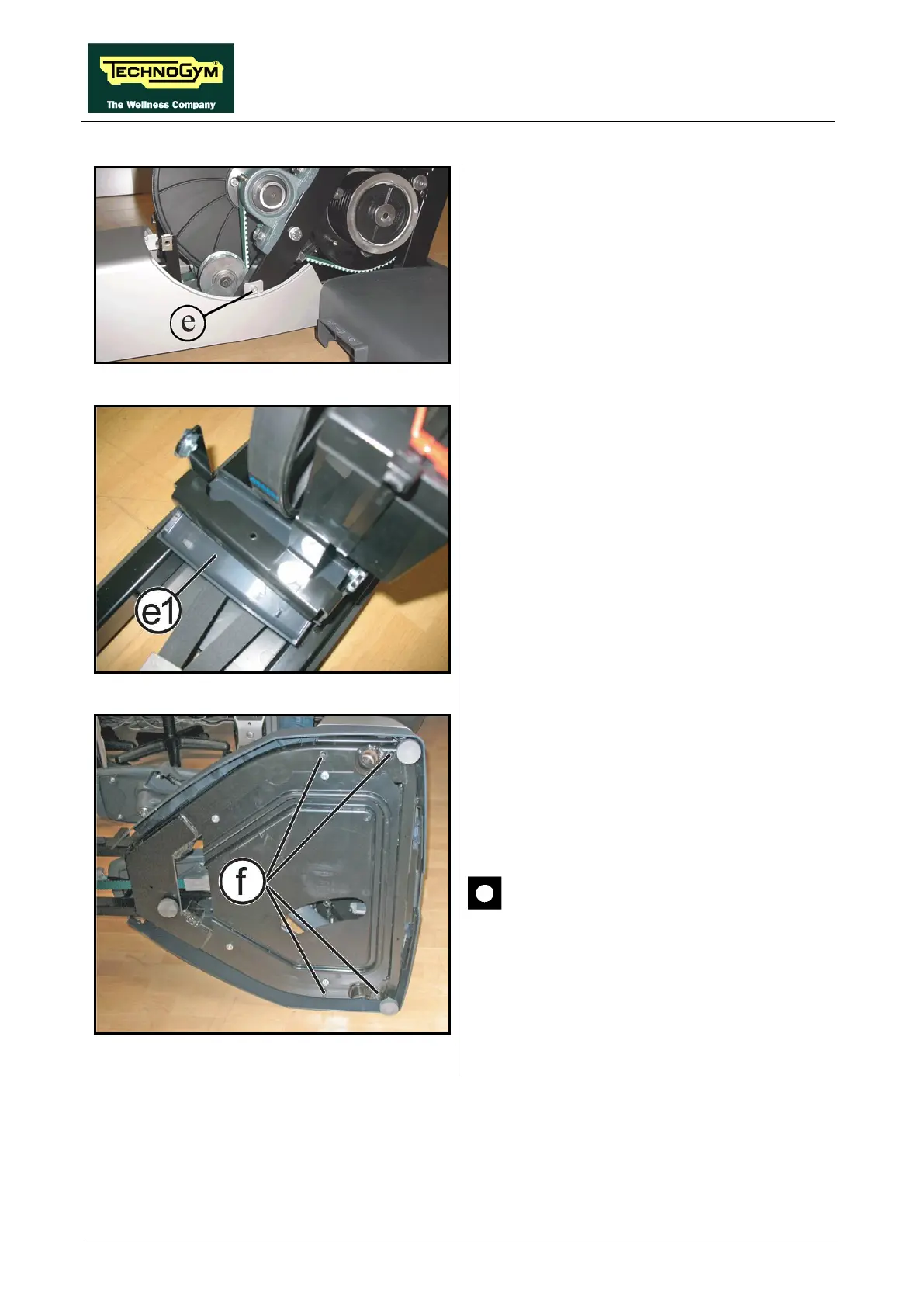

Figure 7.7-4
7. Back off the screw (e)
on both side of the
machine, using a 5mm hexagonal wrench.
8. Pull out the central guard from the top.
Figure 7.7-5
9. Remove the sweat protection guard (e1) if
necessary.
Figure 7.7-6
10.
Overturn the machine on one side and back
off the 4 nuts (f) using a 17mm wrench.
11.
Place the machine in usage position and pull
out the rear guard assembly from the top.
CAUTION: During reassembly, lock
down the screw
s (f) using a torque
wrench setting of 27Nm.
To reassemble the guards, carry out the above
steps in reverse order.
