Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.43

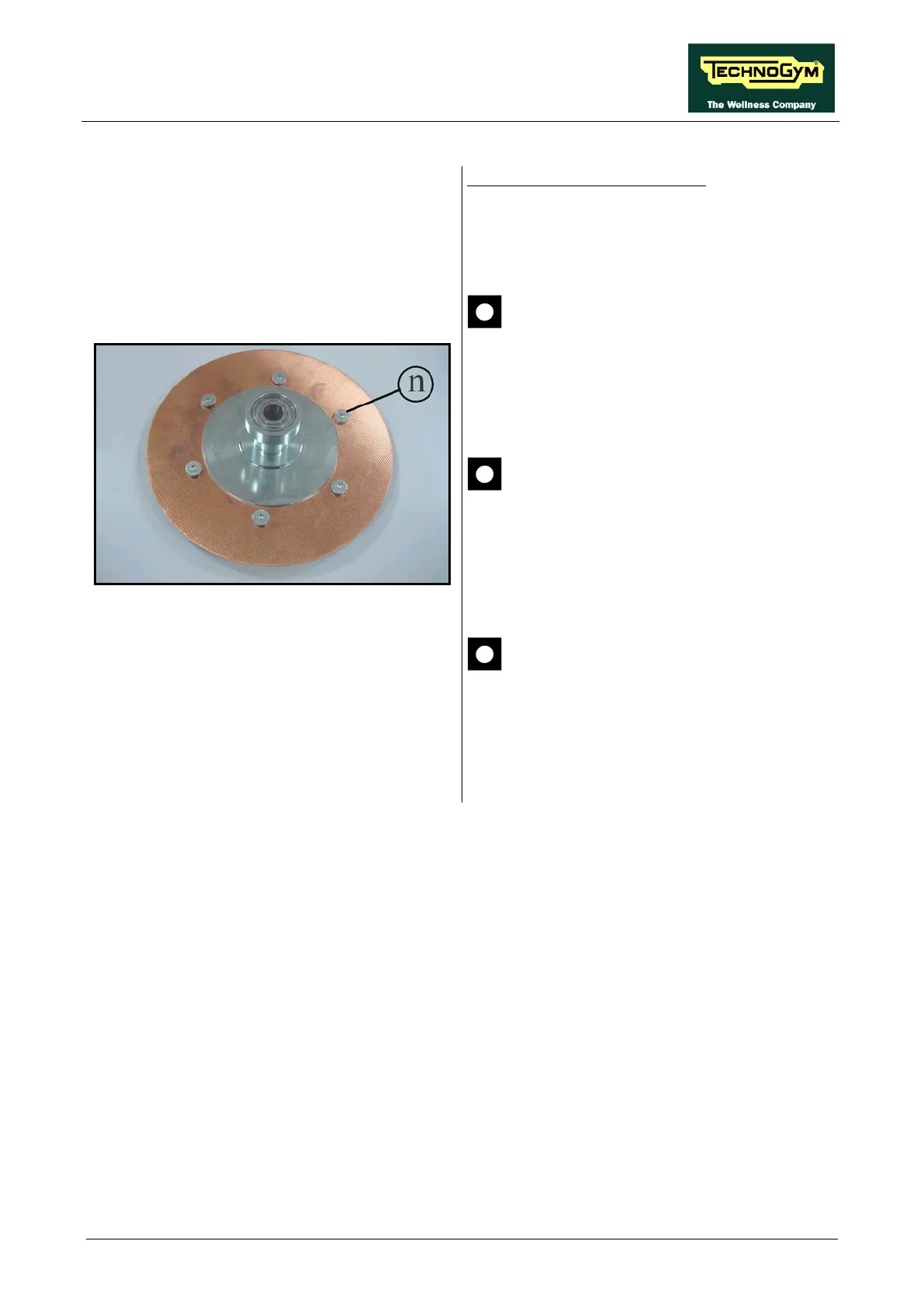

Figure 7.15-5
To disassemble the copper disk:
14. Back off the 6 screws (f)
using a 4mm
hexagonal wrench.
CAUTION: Take particular care with
the copper disk, as it bends easily and
may then cause problems after
reassembly, b
y brushing against the
winding block.
CAUTION: During reassembly, lock
down the screws (n)
using a torque
wrench setting of 6Nm.
To reassemble the secondary shaft assembly,
carry out the above steps in reverse order.
CAUTION: After completing the
reas
sembly, carry out the adjustment
procedure described in paragraphs: 8.1.
“Belt tension” and 8.4. “
Align the belt
connecting the primary and secondary
shafts”.
